Remove/install rear bumper - AR88.20-P-2200GH

MODEL 163.113 #A up to 289564,

163.154 #X up to 754619,

163.154 #A up to 289564,

163.136/172

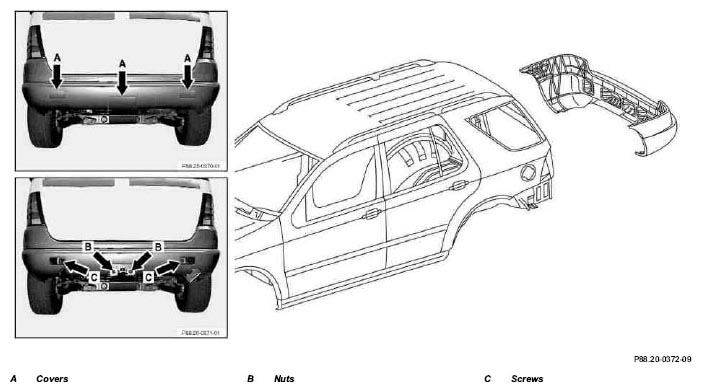

Fig 1: Identifying Rear Bumper & Fasteners

G04609094

	Remove/install
1.1	Disconnect antenna connector of E-call emergency call system	Only with emergency call system E-Call, code 349. Connector is located behind side flap of right C-pillar paneling at jack mounting point.
2	Remove covers (A)	Do not damage paint. Do not break off clips. Installation wedge	Fig 2
3	Unscrew mounting nuts (B) from bumper		*BA88.20-P-1004-01B
4	Unscrew screws (C)		*BA88.20-P-1005-01B
5.1	Remove nut from rear mud guard	Only if present	*BA88.30-P-1004-01A
6	Remove bumper toward rear	Do not damage paint. Installation: Align bumper at tailgate and at taillamps
7.1	Remove rubber seal for E-call emergency call system antenna from body at right	Only with emergency call system E-Call, code 349.
8	Install in the reverse order

TORQUE SPECIFICATION

Bumper

Number	Designation		Model 163
BA88.20-P-1004-01B	Nut, rear bumper to frame	Nm	8
BA88.20-P-1005-01B	Screws, rear bumper on frame	Nm	8

TORQUE SPECIFICATION

Detachable body components, underride guard

Number	Designation		Model 163 up to 31.8.01	Model 163 as of 1.9.01
BA88.30-P-1004-01A	Nut for retaining strap on mud guard on vehicle underbody	Nm	6	6

Fig 2: Identifying Long Wedge (115 589 03 59 00)

G04609095
