Remove/install mount for exterior tailgate detachable component - AR88.30-P-0400GH

MODEL 163.113/154#A as of 289565, 163.113 #X as of 754620, 163.128 /154 /157 /175 except CODE (U49) Styling package

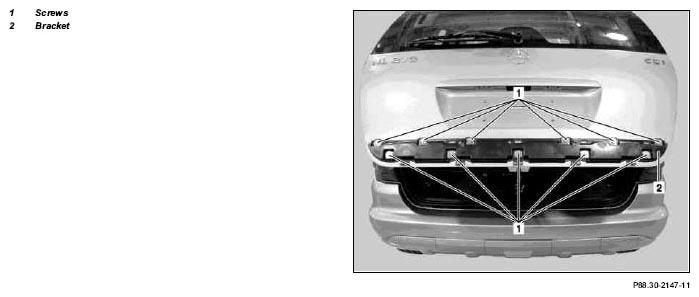

Fig 1: Identifying Mount For Exterior Tailgate Detachable Component
G04609120
REMOVINGINSTALLING Removing and installing
1 Remove detachable component from outside of tailgate   AR88.30-P-0300GH
2 Remove screws (1)
3 Remove mount (2) from tailgate IMPORTANTInstallation:  Check alignment of mount.
4 Install in the reverse order
5 Check alignment of detachable component
