Remove/install detachable trailer hitch components - AR31.10-P-8000-01GH
| Number | Designation | Model 163 | |
|---|---|---|---|
| BA31.10-P-1001-02A | Bolt, trailer hitch to frame crossmember | NM | 160 |

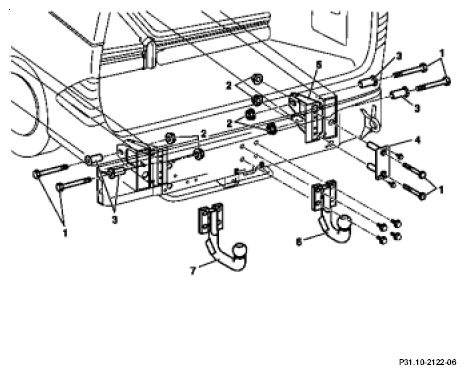

- Remove bolts (1) with nuts (2) and spacer tubes (3).
- Remove right intermediate piece (4).
- Remove right reinforcement (5).
Left reinforcement is not removed.
- Remove short trailer hitch (6).
Unscrew and tighten bolts with hand tools only. Heat bolt heads prior to removal.
Install long trailer hitch (7).
