Remove/install exterior tailgate detachable component - AR88.30-P-0300GH

MODEL 163.113/154#A as (6) of 289565,

163.113 #X as of 754620,

163.128 /154 /157 /175 except CODE (U49) Styling package

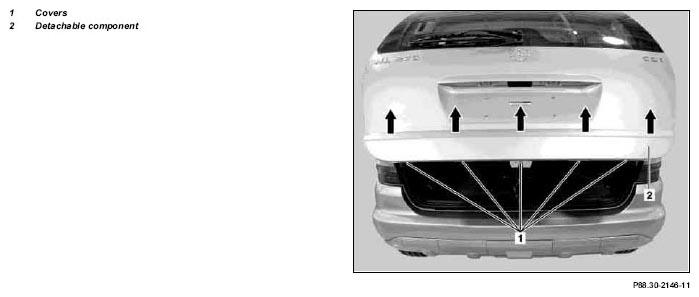

Fig 1: Identifying Exterior Tailgate Detachable Component

	Removing and installing
1	Remove covers (1) from bottom edge of detachable component	Do not damage covers. Long wedge	Figure
2	Remove screws at the bottom of detachable component (2) from mount
3	Attach adhesive tape flush with top edge of detachable component on tailgate	Attach adhesive tape to prevent damage to paintwork.
4	Detach detachable component (2) from mount upward	Installation:  Ensure that clips on detachable component fit into recesses in mount.
5	Install in the reverse order
6	Check alignment of detachable component

Fig 2: Identifying Long Wedge (115 589 03 59 00)
