Smart Brake Support [Rear Crossing] (SBS-RC) Location Index (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

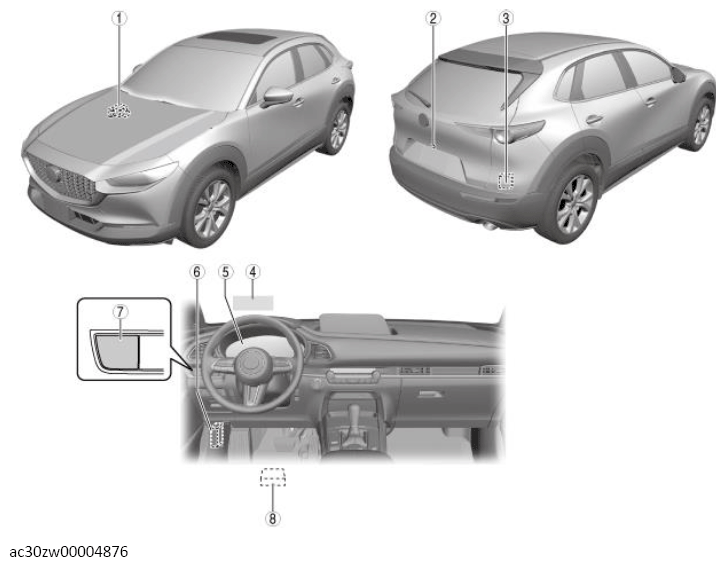

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION [L.H.D. (US)] .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE (US) .) (See DSC HU/CM INSPECTION .)
2	Rear mount camera (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .) (See REAR MOUNT CAMERA INSPECTION .)
3	Rear side radar sensor (See REAR SIDE RADAR SENSOR REMOVAL/INSTALLATION .) (See REAR SIDE RADAR SENSOR INSPECTION .) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
4	Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION (US) .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
5	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION (US) .)
6	Body control module (BCM) (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION (US) .) (See BODY CONTROL MODULE (BCM) INSPECTION (US) .) (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION (US) .) (See VCM INITIAL SETTING .)
7	i-ACTIVSENSE switch (See I-ACTIVSENSE SWITCH REMOVAL/INSTALLATION .) (See I-ACTIVSENSE SWITCH INSPECTION .)
8	360° view monitor controle module / parking assist unit (optical) (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION (US) .) (See 360°VIEW MONITOR CONTROL MODULE INSPECTION .) (See 360°VIEW MONITOR SYSTEM AIMING .) (See PARKING ASSIST UNIT (OPTICAL) REMOVAL/INSTALLATION (US) .) (See PARKING ASSIST UNIT (OPTICAL) INSPECTION .)
