Parking Assist Unit (Optical) Removal/Installation (Us)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Remove the head restraint.
Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
Perform the following procedure.
1. Switch the ignition off.
2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the front seat (LH). (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
Perform the following procedure to allow the backup power supply to deplete its stored power. (With backup power supply)
NOTE:
- While the power stored in the backup power supply is being depleted, the door latch and lock actuator does not operate. This does not indicate an improper procedure. Continue to perform the procedure.
- After performing Step 3 and the door latch and lock actuator starts to operate, the door lock switch (driver's side) no longer needs to be operated.
  1. Close the front door (driver's side).
  2. Open the front door (driver's side).
  3. Within 30 s after performing Step 2, press and hold the unlock side of the door lock switch (driver's side) for 5 s or more.
  4. Wait until the door latch and lock actuator stops.
Remove the fastener.

Courtesy of MAZDA MOTORS CORP.
Remove the parking assist unit (optical) cover.
Remove the bolts.

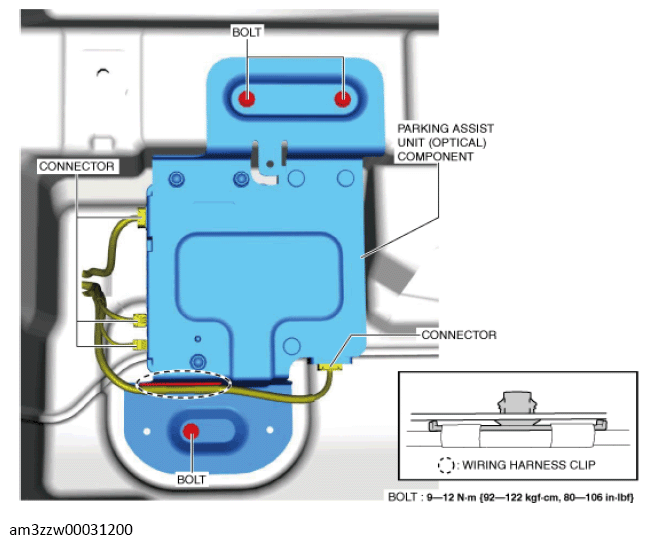

Fig 1: Parking Assist Unit (Optical) Component, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Remove the wiring harness clip.
Remove the parking assist unit (optical) component.
When removing the bracket, perform the following procedure:
1. Remove the bolts.

  Fig 2: Parking Assist Unit (Optical), Bracket And Bolts With Torque Specification
  Courtesy of MAZDA MOTORS CORP.
2. Remove the bracket.
Install in the reverse order of removal.
NOTE:
- When replacing the bracket, remove the backup power supply. (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION (US) .)
