Rear Drain Hose Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module.

Perform the headliner preparation. (See HEADLINER REMOVAL/INSTALLATION (US) .)
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
2. Sun visor (See SUN VISOR REMOVAL/INSTALLATION .)
3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
7. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
8. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
9. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
10. Shift lever knob (MTX)
11. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
12. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
13. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
14. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
15. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
16. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
17. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
18. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
19. Driver-side air bag module
20. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
21. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
22. Rear vent duct No. 2 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
23. Rear vent duct No. 1 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
24. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
25. Headliner (See HEADLINER REMOVAL/INSTALLATION (US) .)
26. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
27. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
28. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
29. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
30. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
31. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
32. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
33. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)
34. Trunk side insulator (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)
35. Shock absorbing pad (See SHOCK ABSORBING PAD REMOVAL/INSTALLATION .)

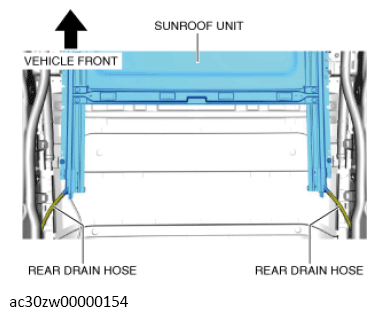

Disconnect the rear drain hose from the sunroof unit.

Courtesy of MAZDA MOTORS CORP.

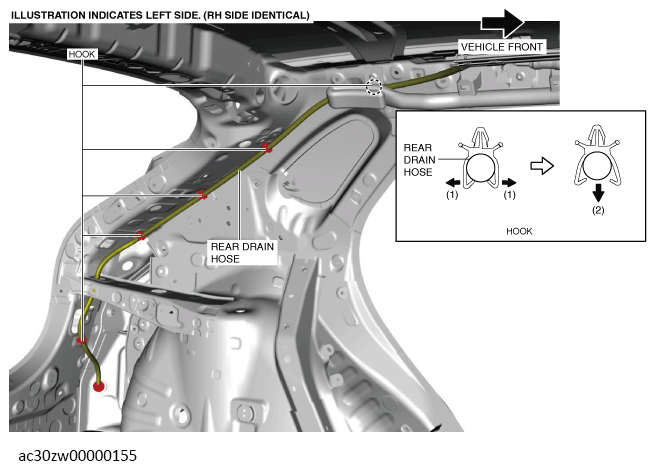

Spread hooks A in the directions of arrows (1), pull the rear drain hose in the direction of arrow (2), and remove it from hooks A.

Courtesy of MAZDA MOTORS CORP.

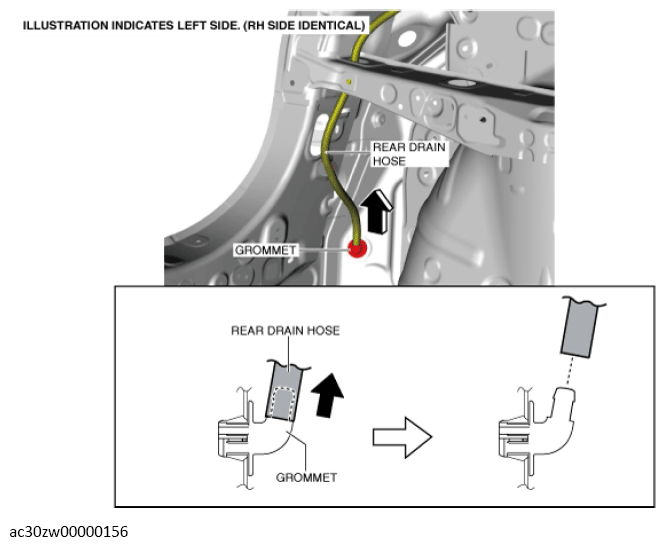

Move the rear drain hose in the direction of the arrow shown in the illustration and remove it from the grommet.

Courtesy of MAZDA MOTORS CORP.

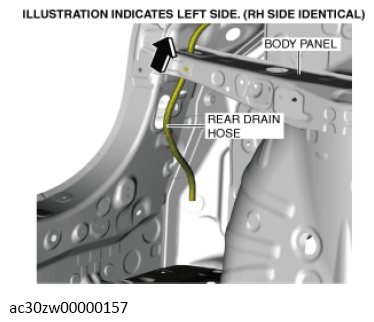

Move the rear drain hose in the direction of the arrow shown in the illustration and remove it from the body panel.

Courtesy of MAZDA MOTORS CORP.

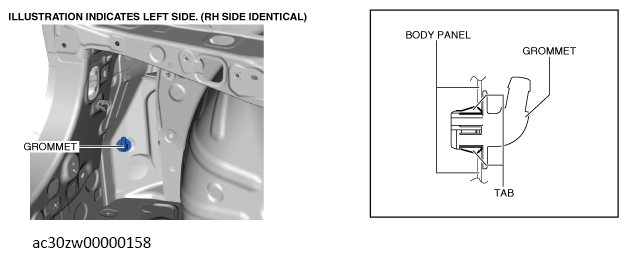

Detach the tabs of the grommet from the body panel using a tape-wrapped flathead screwdriver.

Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
