Air Bag System Location Index (Us/CANADA)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

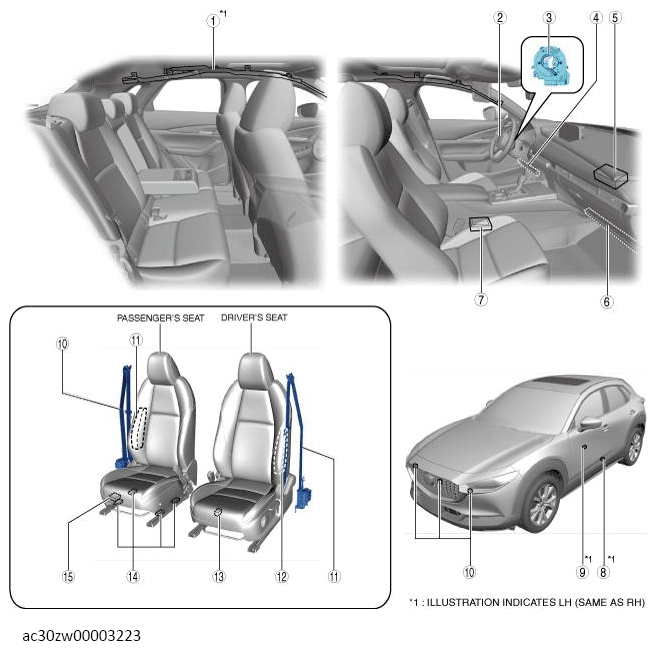

COMPONENT DESCRIPTION

1	Curtain air bag module (See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
2	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL (US/CANADA) .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
3	Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION (US/CANADA) .) (See CLOCK SPRING ADJUSTMENT (US/CANADA) .) (See CLOCK SPRING INSPECTION (US/CANADA) .)
4	Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
5	Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
6	Passenger-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
7	SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION (US/CANADA) .)
8	Side air bag sensor (See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION (US/CANADA) .)
9	Pressure sensor (See PRESSURE SENSOR REMOVAL/INSTALLATION (US/CANADA) .)
10	Crash zone sensor (See CRASH ZONE SENSOR REMOVAL/INSTALLATION (US/CANADA) .)
11	Front pre-tensioner seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
12	Side air bag module (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES (US/CANADA) .)
13	Seat track position sensor (See SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION (US/CANADA) .)
14	Seat weight sensor (See SEAT WEIGHT SENSOR REMOVAL/INSTALLATION (US/CANADA) .)
15	Seat weight sensor control module (See SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION (US/CANADA) .) (See SEAT WEIGHT SENSOR CALIBRATION (US/CANADA) .) (See SEAT WEIGHT SENSOR INSPECTION (US/CANADA) .)
