Clock Spring Adjustment (Us/CANADA)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The clock spring will break if over-wound. Do not forcibly turn the clock spring.

NOTE:

Adjust the clock spring with the front tires in a straight-ahead condition.

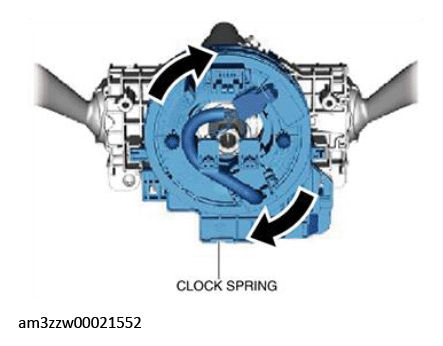

Turn the clock spring clockwise until it stops.

Courtesy of MAZDA MOTORS CORP.

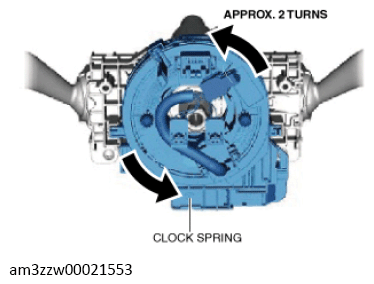

From the stopped position, turn the clock spring counterclockwise approx. 2 turns.

Courtesy of MAZDA MOTORS CORP.

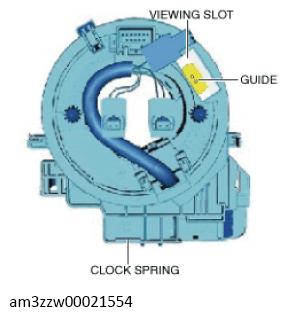

Verify that the guide is visible in the viewing slot.

G13559470

Courtesy of MAZDA MOTORS CORP.

NOTE:

A different color guide appears only when the clock spring adjustment is completed.
