Clock Spring Inspection (Us/CANADA)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

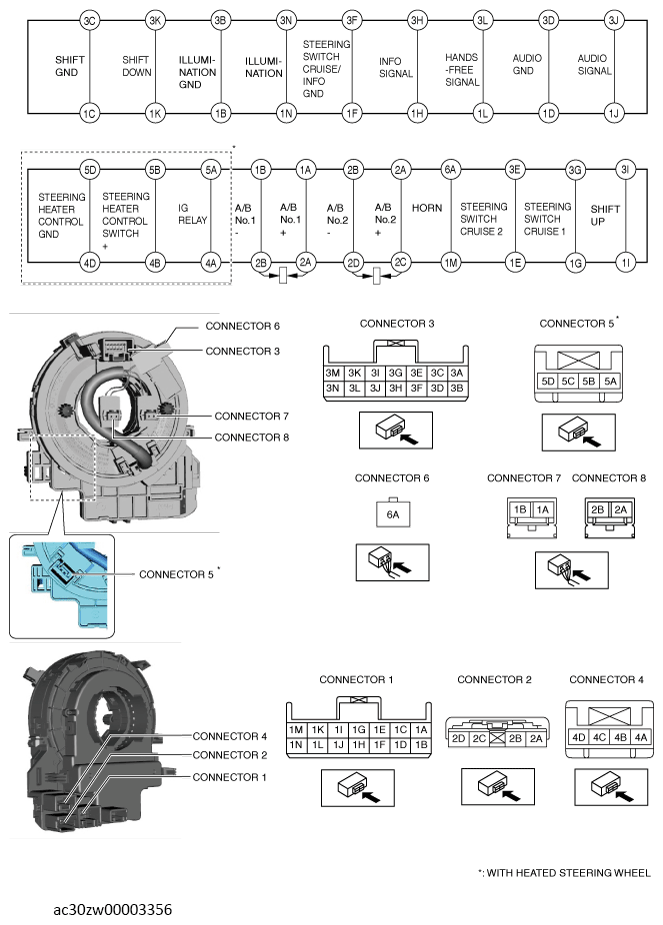

- Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION (US/CANADA) .)

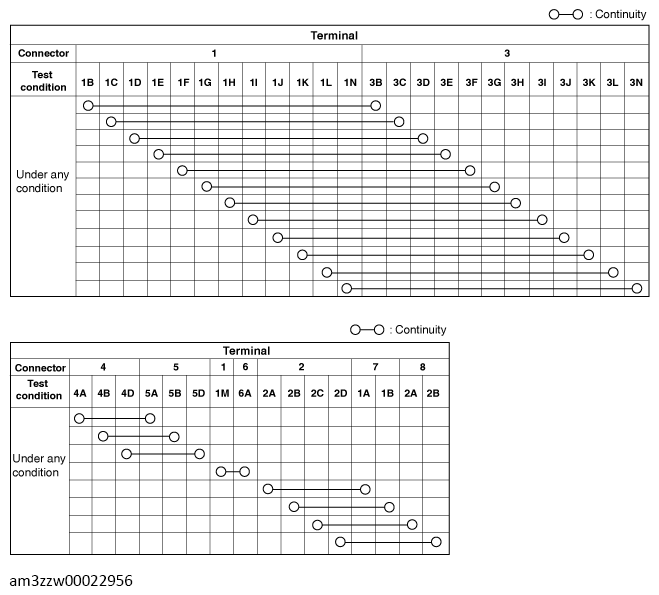

- Verify that the continuity is as indicated in the table.
- If not as indicated in the table, replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION (US/CANADA) .)
