Locks and Openers

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

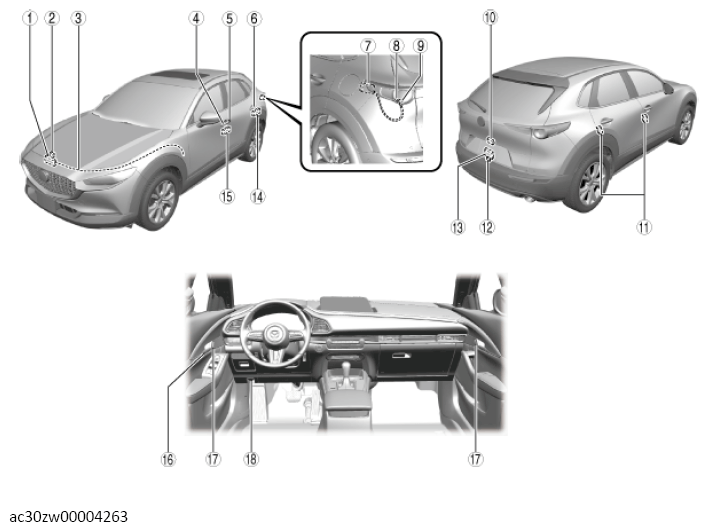

COMPONENT DESCRIPTION

1	Hood latch (See HOOD LATCH REMOVAL/INSTALLATION .) (See HOOD LATCH SWITCH INSPECTION .)
2	Hood striker (See HOOD STRIKER REMOVAL/INSTALLATION .)
3	Hood release cable (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
4	Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
5	Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
6	Rear outer handle (See REAR OUTER HANDLE REMOVAL/INSTALLATION .)
7	Fuel-filler lid lock actuator (See FUEL-FILLER LID LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FUEL-FILLER LID LOCK ACTUATOR INSPECTION .) (See FUEL-FILLER LID LOCK ACTUATOR MANUAL RELEASE PROCEDURE .)
8	Fuel-filler lid lock actuator short-cord (See FUEL-FILLER LID LOCK ACTUATOR SHORT-CORD REMOVAL/INSTALLATION .)
9	Fuel-filler lid opener cable (See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION .)
10	Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .) (See LIFTGATE OPENER SWITCH INSPECTION .)
11	Door lock striker (See DOOR LOCK STRIKER REMOVAL/INSTALLATION .) (See DOOR LOCK STRIKER ADJUSTMENT .)
12	Liftgate lock striker (See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION .)
13	Liftgate latch and lock actuator (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION .)
14	Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION (US) .)
15	Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .) (See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION (US) .)
16	Inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
17	Door lock switch (interior) (See DOOR LOCK SWITCH REMOVAL/INSTALLATION (US) .) (See DOOR LOCK SWITCH INSPECTION .)
18	Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
