Section 102 (Security And Locks)
>>
Hood Striker Removal/Installation
Hood Striker Removal/Installation
WARNING:
This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
Remove the screws.

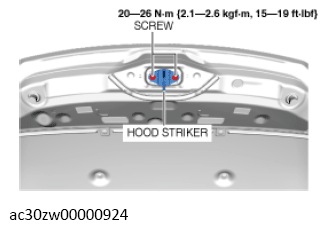

Fig 1: Hood Striker And Screws With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the hood striker.
Install in the reverse order of removal.
