Hood Latch Switch Inspection

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

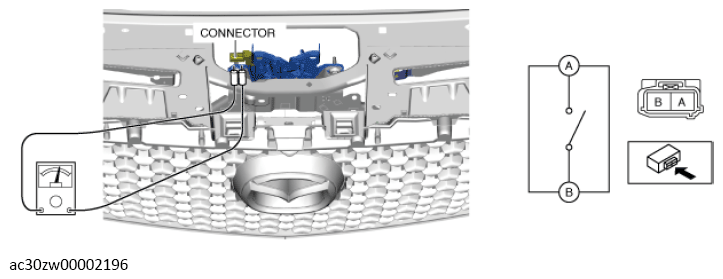

Disconnect the hood latch switch connector. (See HOOD LATCH REMOVAL/INSTALLATION .)

Verify that the continuity is as indicated in the table.

NOTE:

Inspect the continuity when the hood is open and closed.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

If the operation as indicated in the table cannot be verified, replace the hood latch. (See HOOD LATCH REMOVAL/INSTALLATION .)
