Door Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws, and then remove the door lock striker.

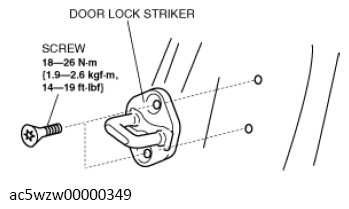

    Fig 1: Door Lock Striker And Screws With Torque Specification
    G13114512Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)
