Fuel-Filler Lid Lock Actuator Manual Release Procedure

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If the fuel-filler lid cannot be opened due to a discharged battery or malfunctions in the electrical system, open the fuel-filler lid using the following procedure.
  1. Remove the following parts:
    1. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    3. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Trunk side upper trim (LH) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Open the cargo net hook cover and remove the bolt.

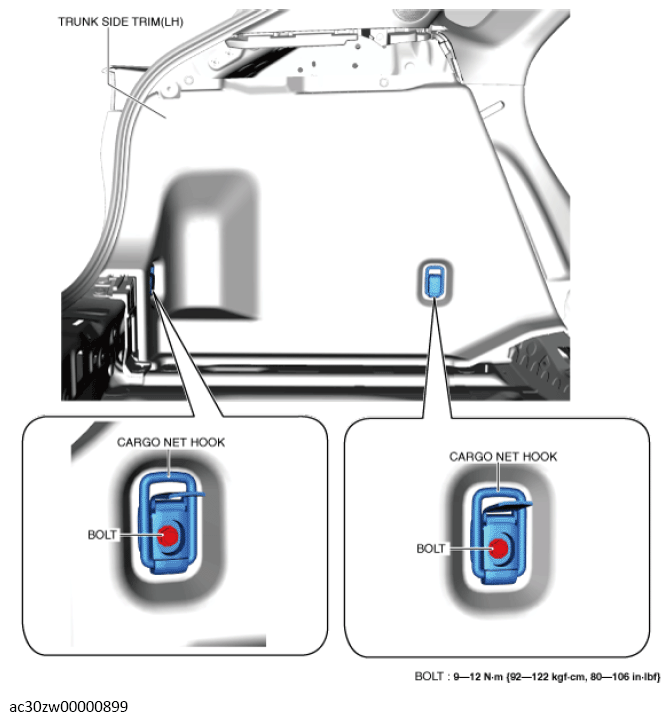

    Fig 1: Trunk Side Trim (LH), Cargo Net Hooks And Bolts With Torque Specification
    G13560325Courtesy of MAZDA MOTORS CORP.
  3. Remove the cargo net hooks.
  4. Remove the fasteners.

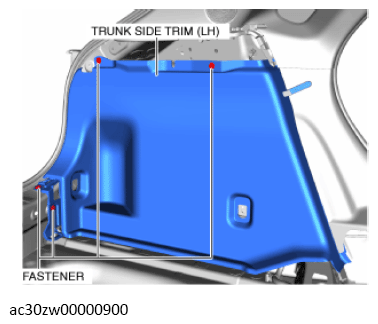

    G13560326Courtesy of MAZDA MOTORS CORP.
  5. Move the trunk side trim (LH) in the direction of the arrow shown in the illustration while detaching the clip.

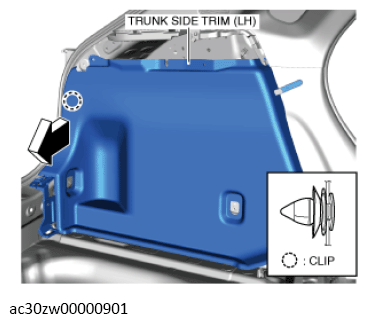

    G13560327Courtesy of MAZDA MOTORS CORP.
  6. Partially peel the trunk side trim (LH).

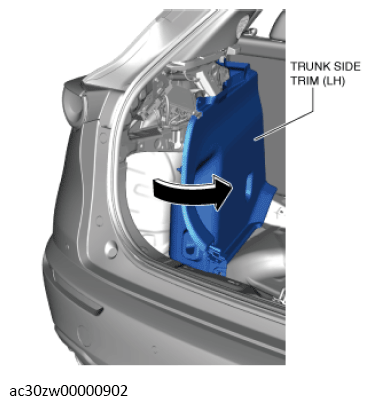

    G13560328Courtesy of MAZDA MOTORS CORP.
  7. Remove the trunk side insulator (LH). (See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)
  8. Pull the fuel-filler lid opener cable and open the fuel-filler lid.

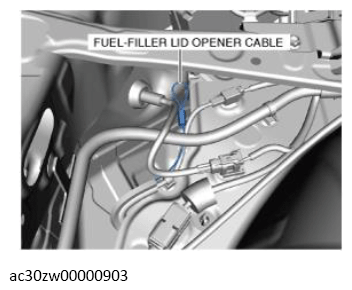

    G13560329Courtesy of MAZDA MOTORS CORP.
