Without center display

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    8. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    12. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    14. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    15. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    16. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    17. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    18. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    19. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    20. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    21. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    22. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    23. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    24. Head restraint
    25. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  3. Disconnect antenna feeder No. 1.

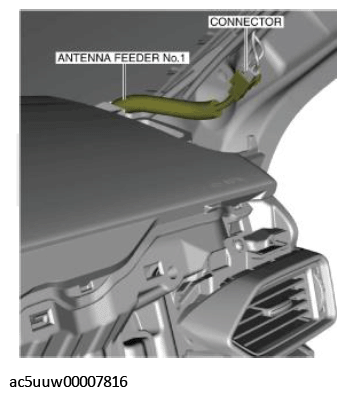

    Fig 1: Locating Antenna Feeder No. 1
    G11426004Courtesy of MAZDA MOTORS CORP.
  4. Disconnect antenna feeder No. 3.

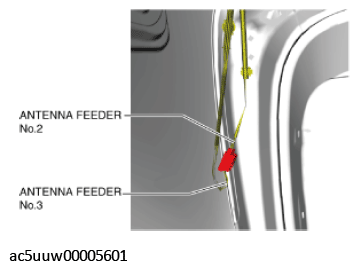

    Fig 2: Disconnecting Antenna Feeder No. 3
    G11426005Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity between antenna feeder No. 2 terminals is as indicated in the table.
    Fig 3: Checking Continuity Between Antenna Feeder No. 2
    G11426006Courtesy of MAZDA MOTORS CORP.
    Fig 4: Antenna Feeder No. 2 Terminals Continuity Chart
    G11426007Courtesy of MAZDA MOTORS CORP.
