Trunk End Trim Removal/Installation

  1. Disconnect the negative battery terminal. (With Bose®) (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
  3. Partially peel back the weatherstrip.

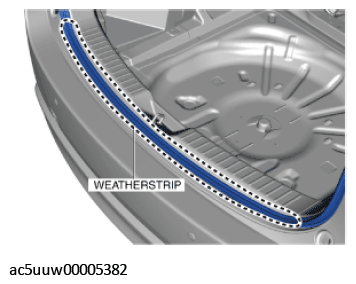

    Fig 1: Trunk End Trim Weatherstrip
    G11428043Courtesy of MAZDA MOTORS CORP.
  4. Remove the fasteners.

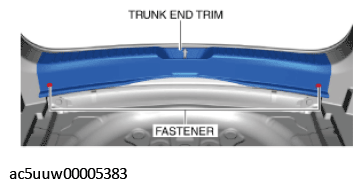

    Fig 2: Trunk End Trim And Fasteners
    G11428044Courtesy of MAZDA MOTORS CORP.
  5. Move the trunk end trim in the order of arrows (1) and (2) shown in the figure, remove it while detaching the clips, pins, and the guides.

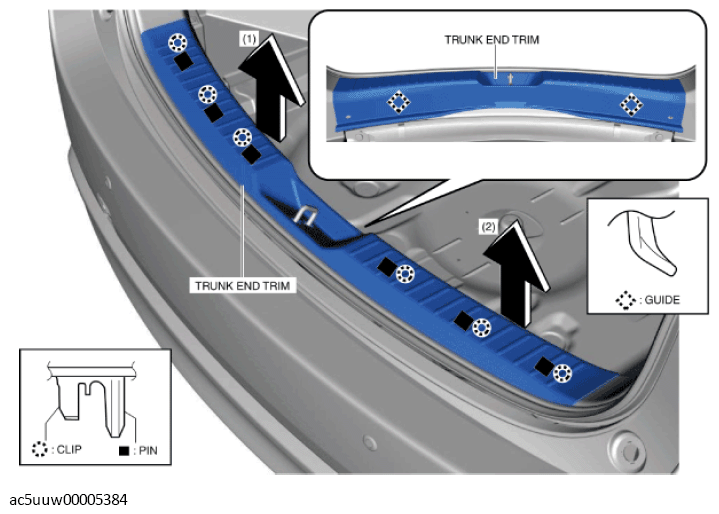

    Fig 3: Removing Trunk End Trim
    G11428045Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
