Rear Seat Cushion Removal/Installation

CAUTION:
  • When performing the procedure with a rear seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.
  1. While moving the rear seat cushion lock levers in the direction of arrows (1) shown in the figure, lift up the rear seat cushion in the direction of arrows (2) and detach the rear seat cushion lock from the rear seat cushion.

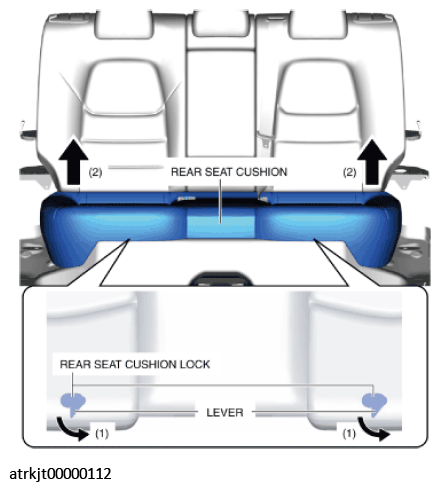

    Fig 1: Moving Rear Seat Cushion Lock Levers
    G11426480Courtesy of MAZDA MOTORS CORP.
  2. While pulling the rear seat cushion up in the direction of the arrow (1) shown in the figure, move it in the direction of arrow (2) and detach the rear seat cushion from the hook.

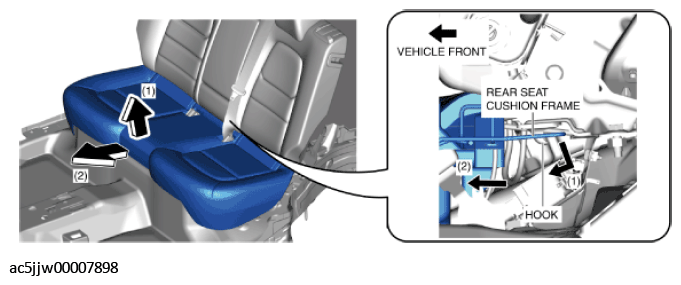

    Fig 2: Pulling Rear Seat Cushion Up
    G11426481Courtesy of MAZDA MOTORS CORP.
  3. Remove the felt.

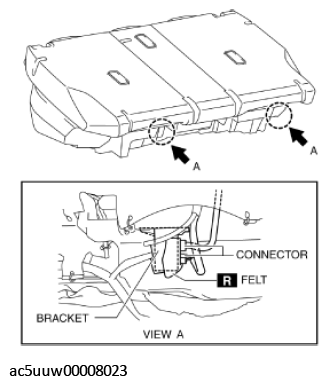

    Fig 3: Locating Rear Seat Cushion
    G11426482Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When installing the connectors to the rear seat, the felt do not need to be reinstalled.
  4. Remove the connector from the bracket.
  5. Disconnect the rear seat warmer connectors.
  6. Disconnect the USB power outlet connector.

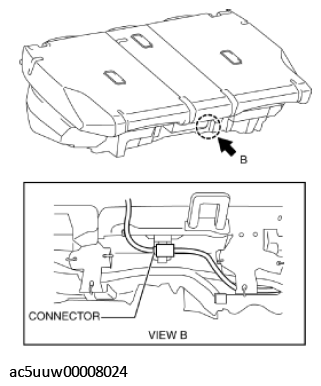

    Fig 4: Locating Rear Seat Warmer Connectors
    G11426483Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear seat cushon.
  8. Install in the reverse order of removal.
