Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)

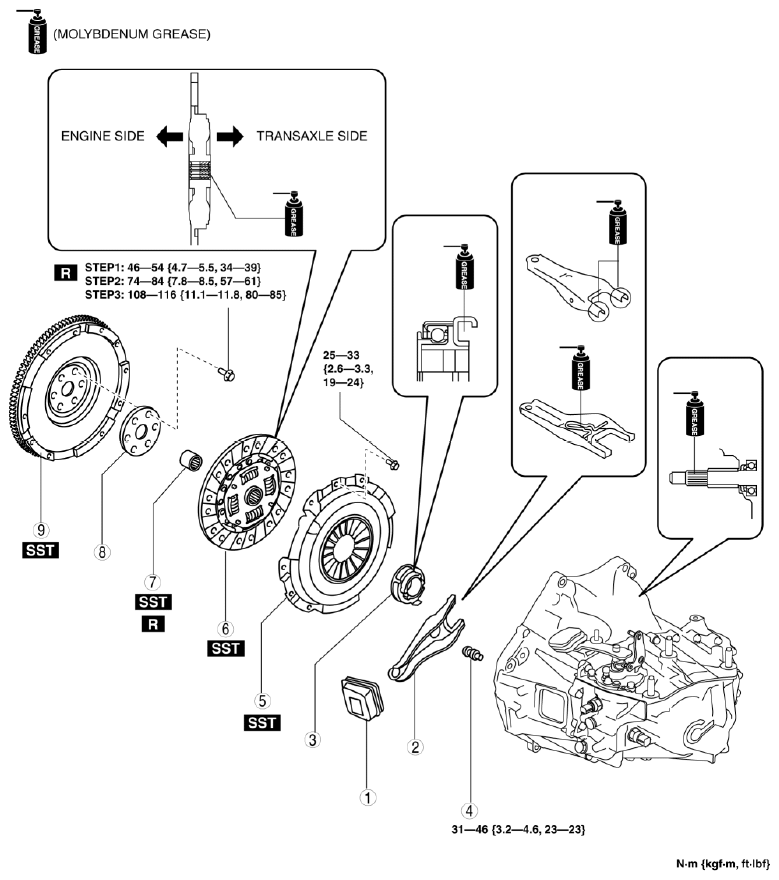

Fig 1: Clutch Unit Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot
2	Clutch release fork
3	Clutch release collar
4	Pivot pin
5	Clutch cover (See Clutch Cover and Disc Removal Note .) (See Clutch Disc and Cover Installation Note .)
6	Clutch disc (See Clutch Cover and Disc Removal Note .) (See Clutch Disc and Cover Installation Note .)
7	Pilot bearing (See Pilot Bearing Removal Note .) (See Pilot Bearing Installation Note .)
8	Plate
9	Flywheel (See Flywheel Removal Note .) (See Flywheel Installation Note .)
