Manual Transaxle Oil Replacement

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle on level ground.
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the drain plug and gasket, and drain the manual transaxle oil.

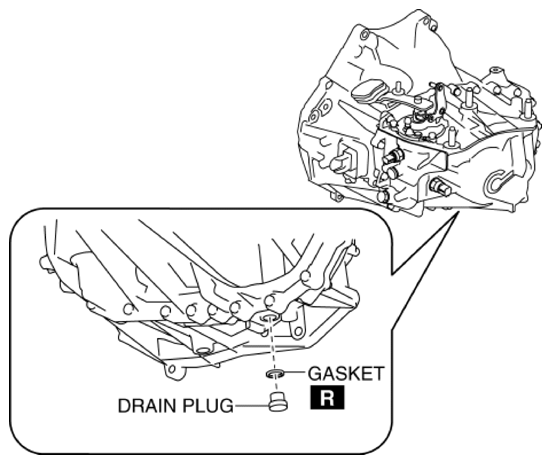

Fig 1: Identifying Manual Transaxle Oil Drain Plug And Gasket
Courtesy of MAZDA MOTORS CORP.
Install a new gasket and the drain plug.
Tightening torque
- 39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
Remove the oil level plug and gasket.

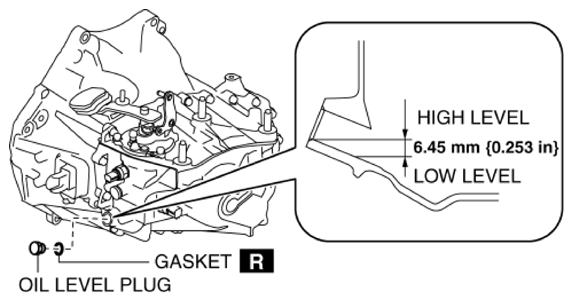

Fig 2: Identifying Oil Level Plug High And Low Level Dimensions
Courtesy of MAZDA MOTORS CORP.
Add the specified manual transaxle oil through the oil level plug port.
Manual transaxle oil grade
- API service GL-4
Manual transaxle oil viscosity
- SAE 75W-80
Manual transaxle oil capacity (approx. quantity)
- 1.65 L {1.74 US qt, 1.45 lmp qt}
Install a new gasket and the oil level plug.
Tightening torque
- 39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
