Clutch Cover and Disc Removal Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

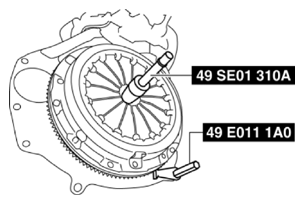

- Hold the clutch unit using the SST
.
Courtesy of MAZDA MOTORS CORP.
- Loosen each bolt one turn at a time in a crisscross pattern until spring tension is released.
- Remove the clutch cover and disc.
