Flywheel Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Hold the flywheel using the SST .

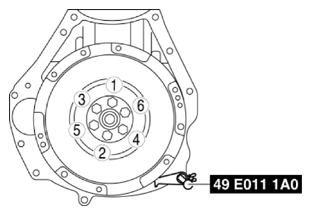

Fig 1: Holding Flywheel Using SST
Courtesy of MAZDA MOTORS CORP.
Remove the lock bolts, and remove the plate and the flywheel.
Inspect for oil leakage from the crankshaft rear oil seal.
- If there is any malfunction, replace the crankshaft rear oil seal. (See REAR OIL SEAL REPLACEMENT .)
