Clutch Disc and Cover Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

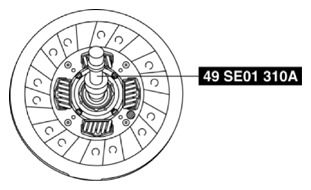

Hold the clutch disc position using the SST .

Fig 1: Holding Clutch Disc Position Using SST
Courtesy of MAZDA MOTORS CORP.

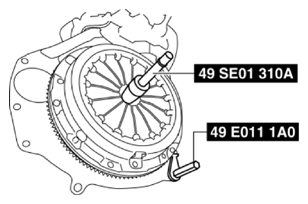

Hold the clutch unit using the SST .

Fig 2: Holding Clutch Unit Using SST
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in Min. 2 stages.
1. Temporarily tighten the bolts in the order shown in the figure.

  Fig 3: Clutch Disc Bolts Tightening Sequence
  Courtesy of MAZDA MOTORS CORP.
2. Tighten the bolts completely in the order shown in the figure and install the clutch disc and cover.
  Tightening torque
  - 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}
Remove the SSTs .
