Flywheel Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the crankshaft thread holes.
- Install the flywheel and the plate to the crankshaft, and temporarily tighten a new lock bolts.

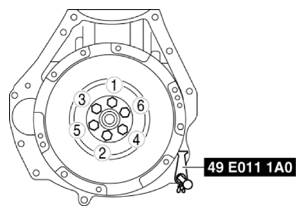

- Hold the flywheel using the SST .
- Tighten the lock bolts completely in the order shown in the figure in the following 3 steps.
Tightening torque
- Step 1: 46-54 N.m {4.7-5.5 kgf.m, 34-39 ft.lbf}
- Step 2: 76-84 N.m {7.8-8.5 kgf.m, 57-61 ft.lbf}
- Step 3: 108-116 N.m {11.1-11.8 kgf.m, 80-85 ft.lbf}
