Dashboard Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    4. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    5. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    7. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    8. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    9. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    10. Audio unit (without center display) (See AUDIO UNIT REMOVAL/INSTALLATION .)
    11. Center display (with center display) (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    12. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    13. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    14. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    15. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    16. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    17. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    18. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    19. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    20. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    21. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    22. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    23. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
    24. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    25. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] or CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    26. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    1. aa. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] or DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
    2. ab. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    3. ac. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    4. ad. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    5. ae. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    6. af. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    7. ag. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    8. ah. Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
  3. Remove the fastener.

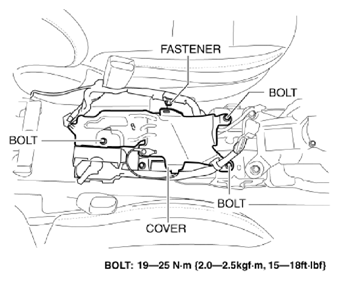

    Fig 1: Removing Fastener
    G10938995Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Remove the cover.
  6. Remove the wiring harness clip.
  7. Disconnect the instrument panel wiring harness connector and remove wiring harness clips A and B shown in the figure.

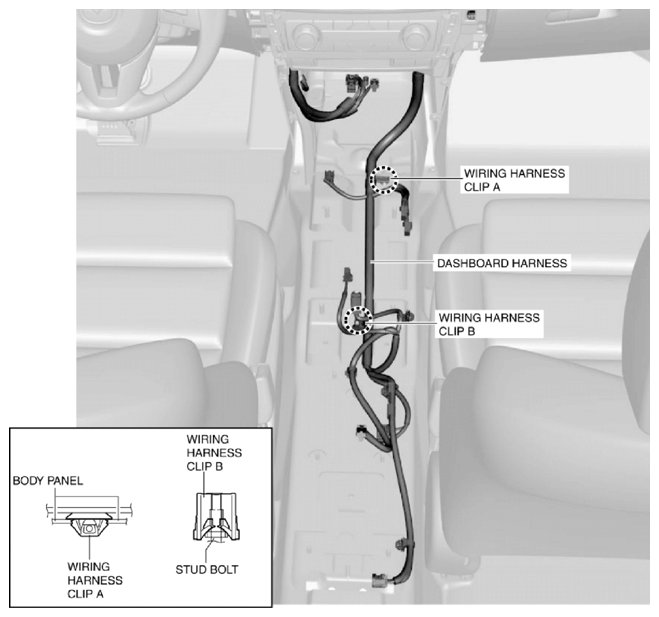

    Fig 2: Removing Wiring Harness Clips
    G10938996Courtesy of MAZDA MOTORS CORP.
  8. Remove the nuts.

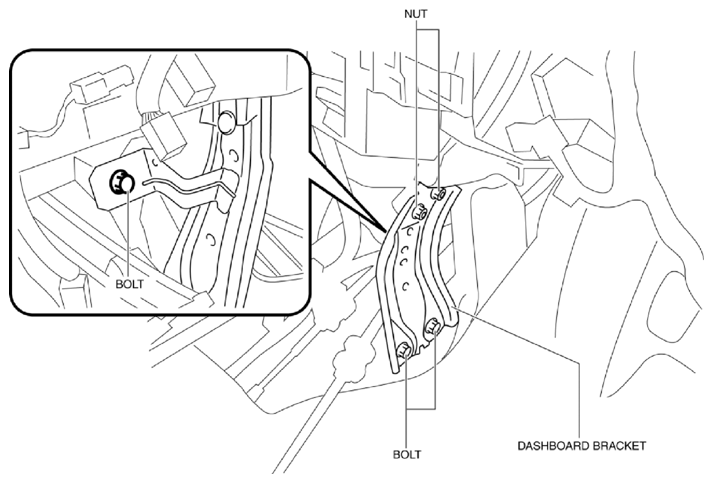

    Fig 3: Removing Nuts
    G10938997Courtesy of MAZDA MOTORS CORP.
  9. Remove the bolts.
  10. Remove the dashboard bracket.
  11. To prevent damage to the windshield, apply protective tape to the position shown in the figure.

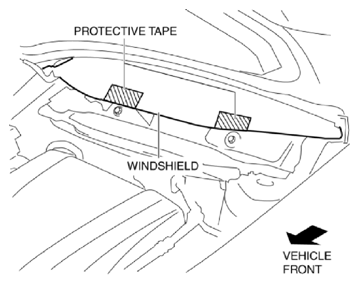

    Fig 4: Applying Protective Tape To Position
    G10938998Courtesy of MAZDA MOTORS CORP.
  12. Remove bolts.

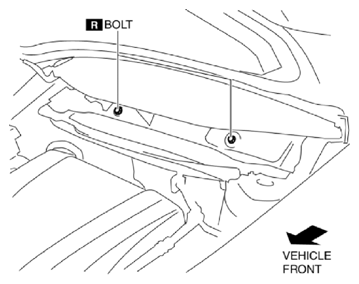

    Fig 5: Removing Bolts
    G10938999Courtesy of MAZDA MOTORS CORP.
  13. Remove the caps and the bolts.

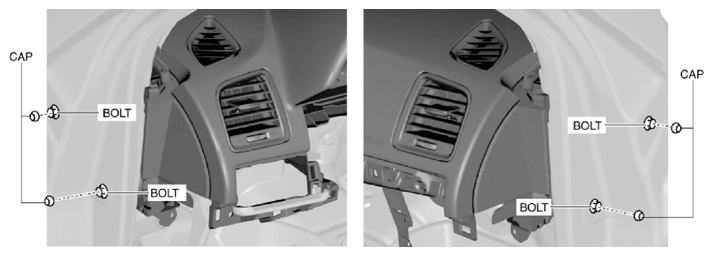

    Fig 6: Removing Caps And Bolts
    G10939000Courtesy of MAZDA MOTORS CORP.
  14. Move the dashboard in the direction of the arrow in the order of (1), (2) shown in the figure, then remove the guide pin.

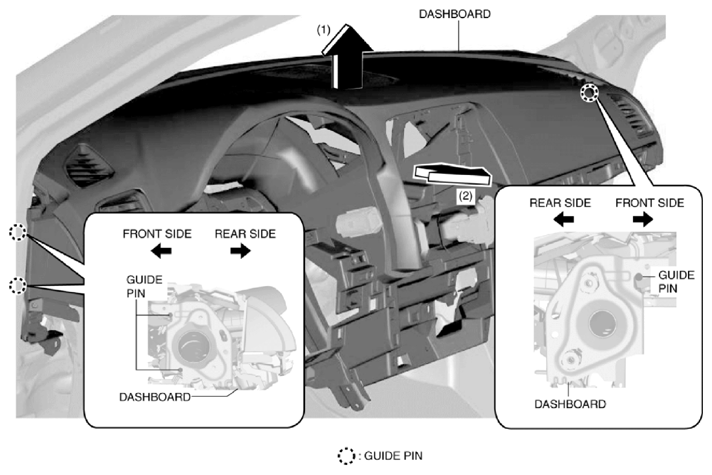

    Fig 7: Moving Dashboard
    G10939001Courtesy of MAZDA MOTORS CORP.
  15. While rotating the dashboard in the direction shown in the figure, pull it out toward the vehicle's rear side.

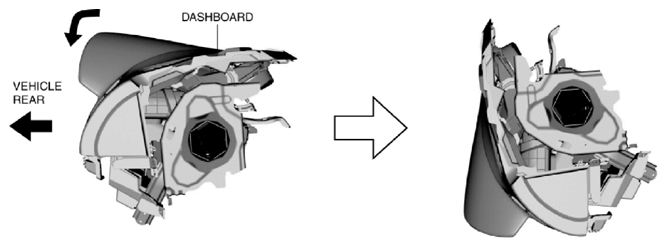

    Fig 8: Rotating Dashboard
    G10939002Courtesy of MAZDA MOTORS CORP.
  16. Take the dashboard off from the front driver-side door or front passenger-side door opening.
