Rear Console Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
    9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    10. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
  3. Remove the screws.

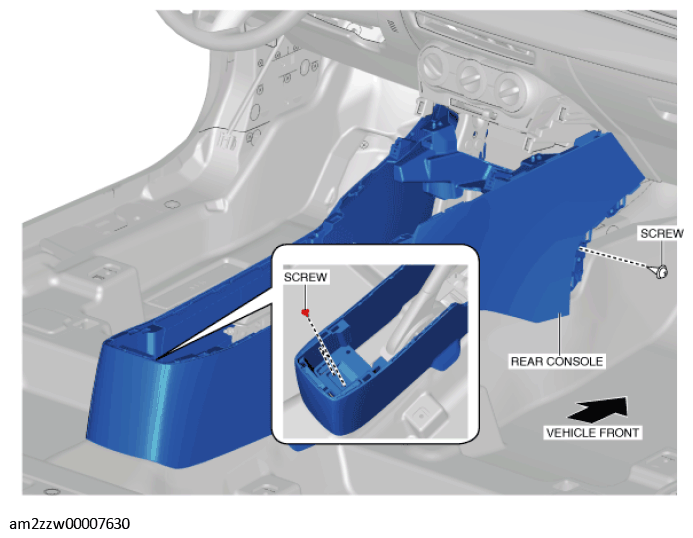

    Fig 1: Removing Rear Console Screws
    G11434579Courtesy of MAZDA MOTORS CORP.
  4. Remove the wiring harness clips.
  5. Move the rear console in the direction of the arrow shown in the figure, and while detaching the clips from the dashboard, release the guide from the parking brake lever bracket.

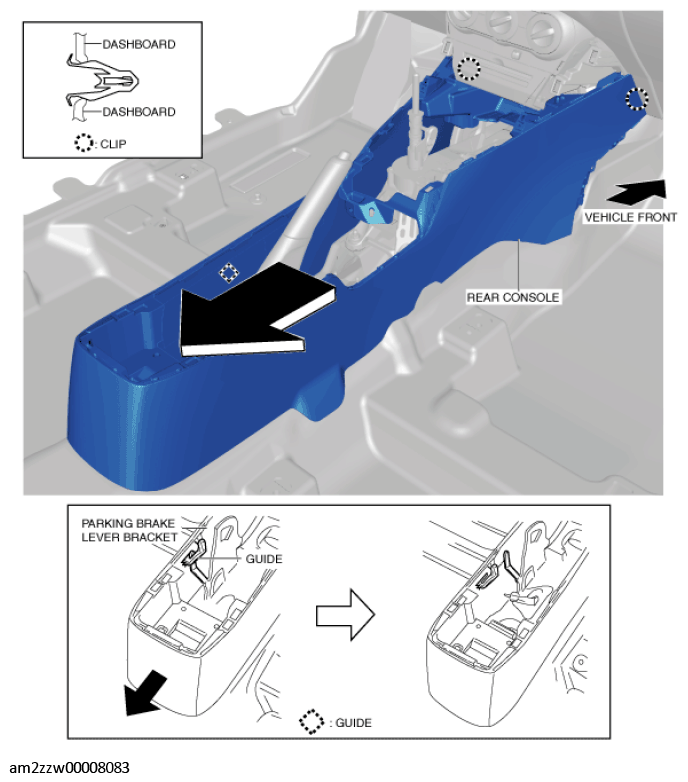

    Fig 2: Moving Rear Console
    G11434580Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear console while avoiding the selector lever and the parking brake lever.
  7. Install in the reverse order of removal.
