Shift Panel Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Pull the shift panel in the direction of the arrow shown in the figure and detach the shift panel from the rear console.

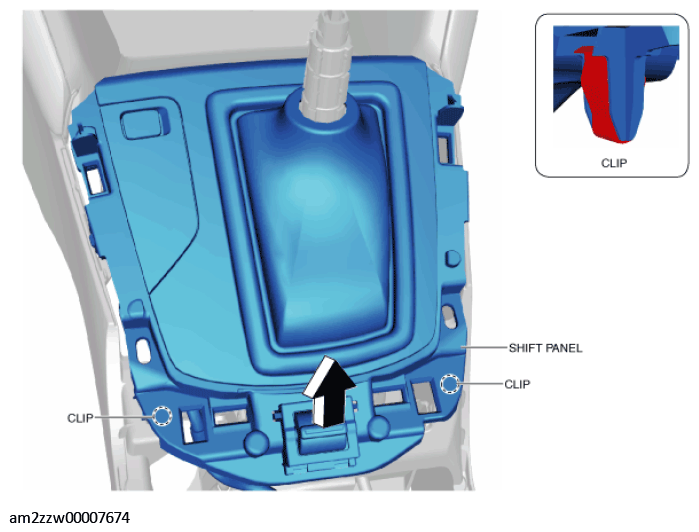

    Fig 1: Detaching Shift Panel From Rear Console
    G11434600Courtesy of MAZDA MOTORS CORP.
  4. Pull the shift panel in the direction of the arrow shown in the figure, detach the clips from the front console box and pull out the pins from the console side panel.

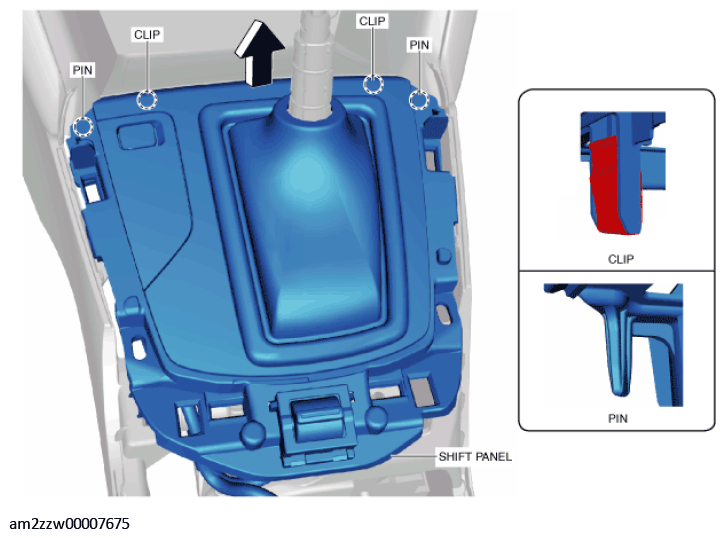

    Fig 2: Detaching Clips From Front Console Box
    G11434601Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the shift indicator connector.
  6. Remove the shift panel.
  7. Install in the reverse order of removal.
