Center Console Tray Removal/Installation

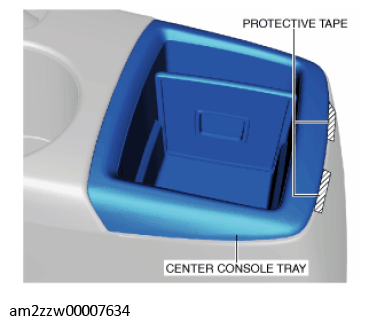

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.

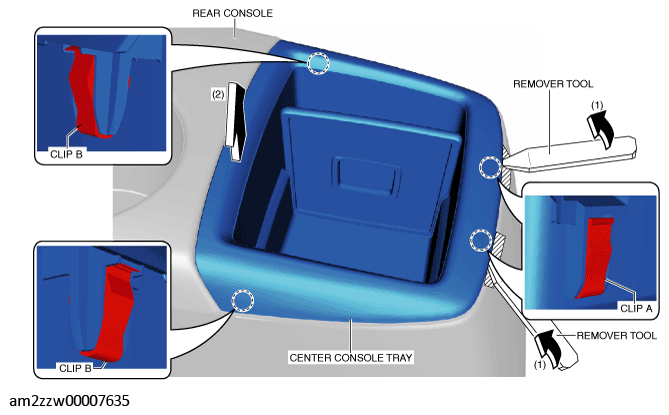

Insert a remover tool into the positions shown in the figure, move it in the directions of arrows (1), and detach clips A from the rear console.

Fig 2: Inserting Remover Tool Into Positions
Courtesy of MAZDA MOTORS CORP.
Pull the center console tray in the direction of arrow (2) shown in the figure, detach clips B from the rear console and remove the center console tray.
Install in the reverse order of removal.
