Shift Bezel Removal/Installation

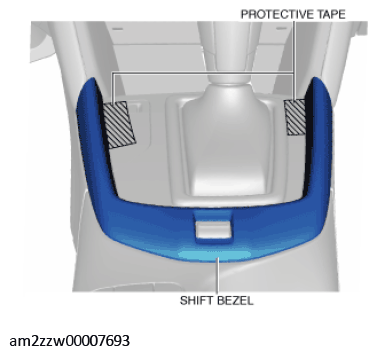

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.

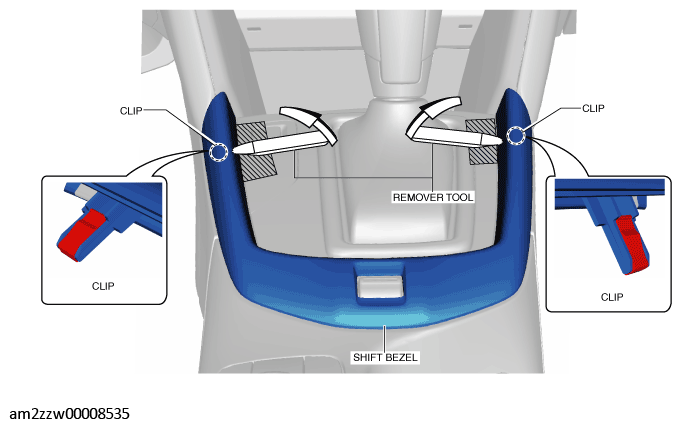

Insert a remover tool into the position shown in the figure, move it in the directions of the arrows and detach the shift panel from the clips.

Fig 2: Detaching Shift Panel From Clips
Courtesy of MAZDA MOTORS CORP.

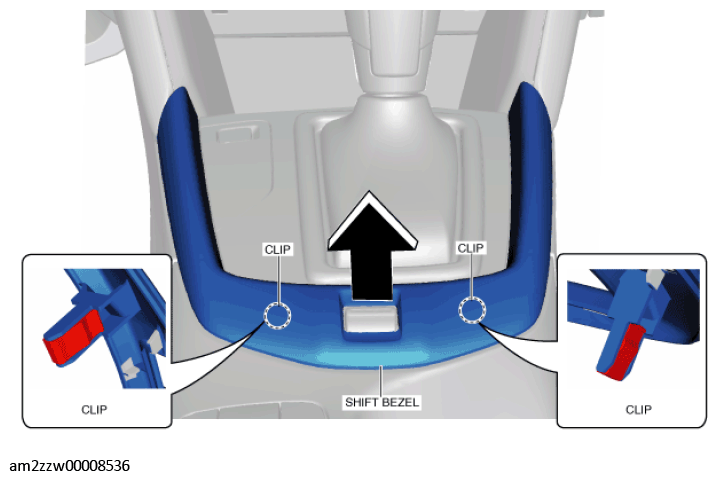

Pull the shift bezel in the direction of the arrow shown in the figure, detach the shift panel from the clips and remove the shift bezel.

Fig 3: Pulling Shift Bezel
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
