Cd Player Installation

  1. Connect the connector.

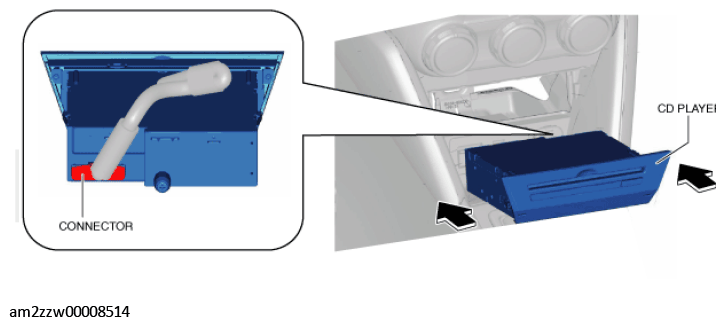

    Fig 1: Connecting CD Player Connector
    G11433994Courtesy of MAZDA MOTORS CORP.
  2. Install the CD player.
  3. Shift the selector lever back to the P position.
  4. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
