Curtain Air Bag Module

  1. Partially peel back the seaming welt.
  2. Remove the following parts:
    1. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    2. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    3. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    5. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    6. Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
    7. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    8. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
    9. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the curtain air bag module connector.

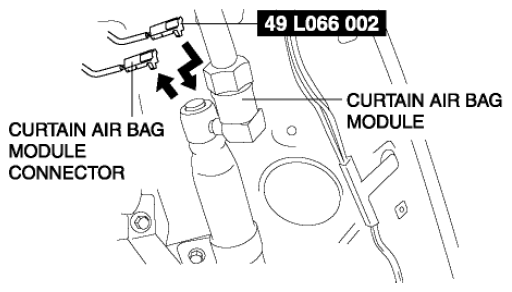

    Fig 1: Disconnecting Curtain Air Bag Module Connector
    G08152459
  4. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .

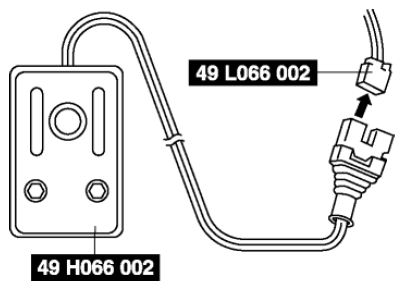

    Fig 2: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G08152460
  5. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  6. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  7. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  8. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the curtain air bag module.
    Fig 3: Identifying Activation Switch On SST (Deployment Tool)
    G08152461
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  9. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
