Center Guide Rail Removal/Installation: Notes

WARNING:
  • When removing the center roller, support the sliding door using a jack. If the center roller is removed from the center guide rail, the sliding door could fall down and cause injury, or damage the part.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
    7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    8. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    9. Center guide rail cover (See CENTER GUIDE RAIL COVER REMOVAL/INSTALLATION .)
  3. Disconnect the center roller from the sliding door. (See SLIDING DOOR REMOVAL/INSTALLATION .)
  4. Support the sliding door using a jack.
  5. Remove the nuts.

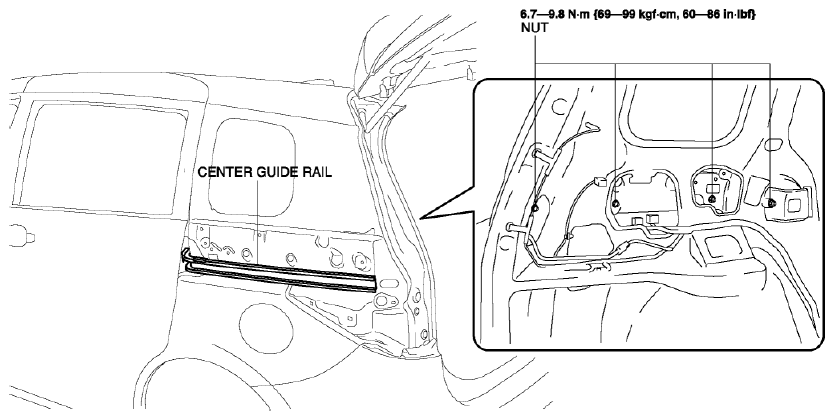

    Fig 1: Center Guide Rail And Nut With Torque Specifications
    G08152785
  6. Remove the center guide rail.
  7. Install in the reverse order of removal. (See SLIDING DOOR REMOVAL/INSTALLATION .)
