Center Guide Rail Cover Removal/Installation

  1. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
    7. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    8. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
  2. Remove the nuts A.

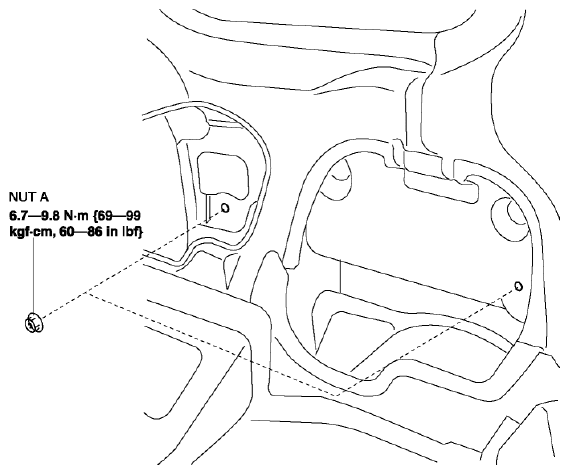

    Fig 1: Center Guide Rail Cover Nuts A With Torque Specifications
    G08153153
  3. Remove the screw B.

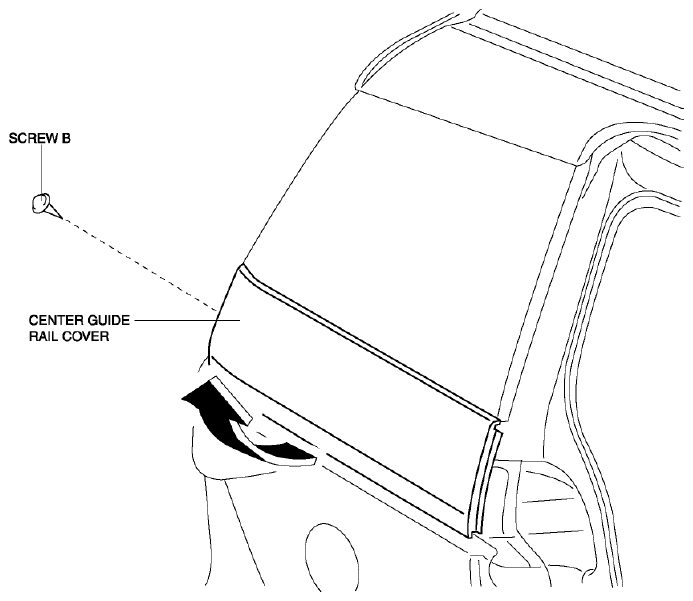

    Fig 2: Pulling Center Guide Rail Cover
    G08153154
  4. Pull the center guide rail cover in the direction of the arrow shown in the figure.
  5. Install in the reverse order of removal.
