Fuel-Filler Lid Opener Cable Removal/Installation
- Disconnect the negative battery cable.
- Remove the following parts:
- Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Rear scuff plate (driver's side) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
- Third-row seat belt lower anchor installation bolt (RH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
- Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
- Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
- Partially peel back the floor covering.

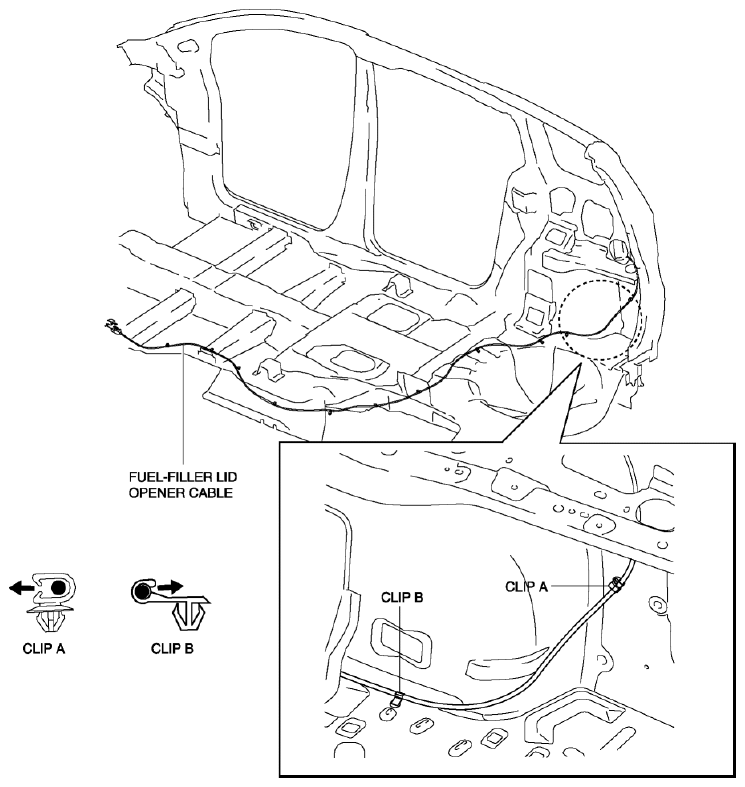

- Remove the fuel-filler lid opener cable from clips A and B.

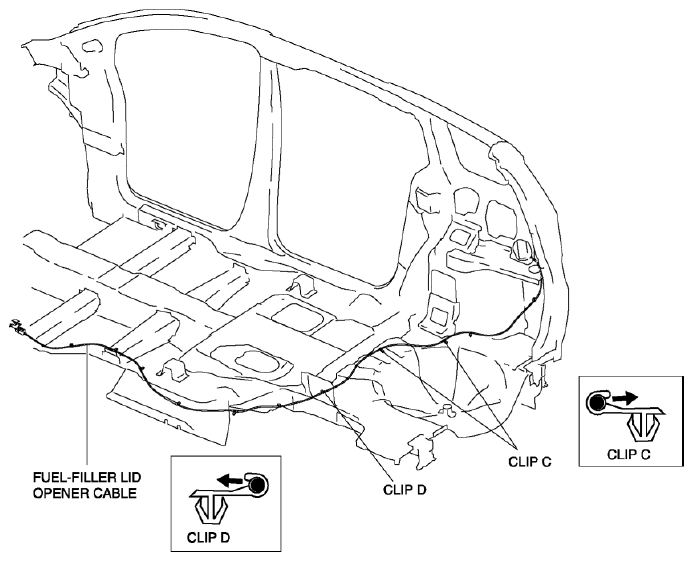

- Remove the fuel-filler lid opener cable from clips C and D.

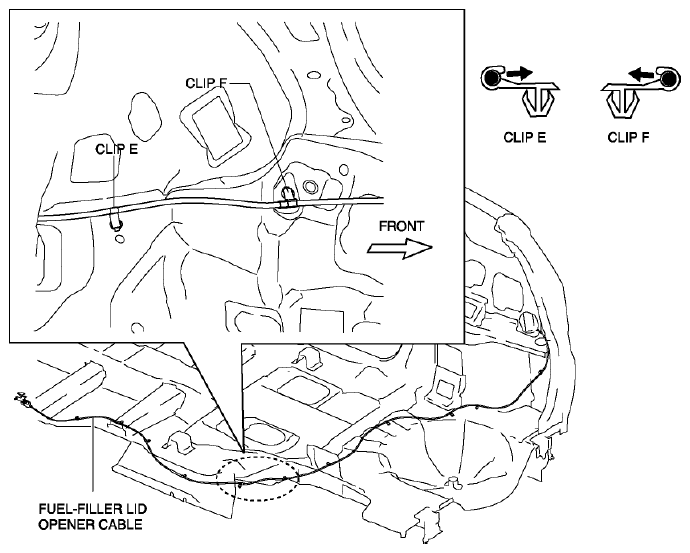

- Remove the fuel-filler lid opener cable from clips E and F.

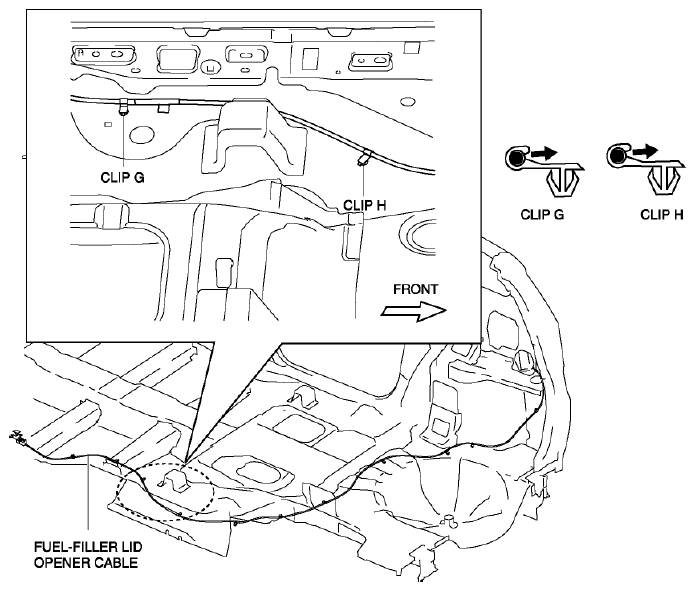

- Remove the fuel-filler lid opener cable from clips G and H.

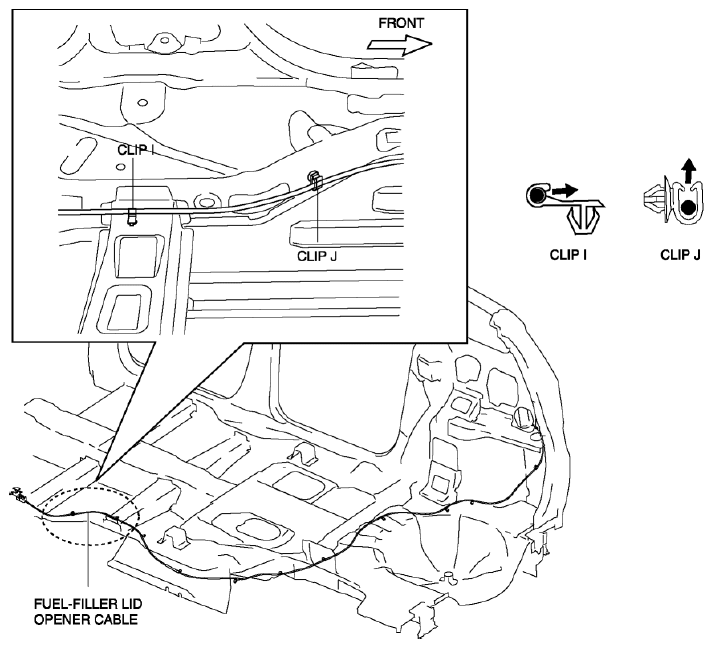

- Remove the fuel-filler lid opener cable from clips I and J.
- Install in the reverse order of removal.
