Rear Center Seat Belt Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand, if this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Remove the following parts:
    1. Rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
    2. Tire house trim. See TIRE HOUSE TRIM REMOVAL/INSTALLATION .
    3. C-pillar trim. See C-PILLAR TRIM REMOVAL/INSTALLATION .
    4. Rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
    5. Rear package trim. See REAR PACKAGE TRIM REMOVAL/INSTALLATION .
  2. Remove in the bolt A.
  3. Remove in the rear center seat belt.

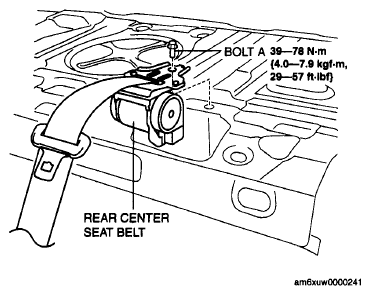

    Fig 1: Identifying Rear Center Seat Belt And Bolt
    G06206098Courtesy of MAZDA MOTORS CORP.
  4. Remove in the bolt B.
  5. Remove in the rear center seat belt retractor and rear buckle (LH).
  6. Install in the reverse order of removal.
    Fig 2: Rear Center Seat Belt Retractor And Rear Buckle With Torque Specifications
    G06206099Courtesy of MAZDA MOTORS CORP.
