Automatic Transaxle Location Index

WARNING: This page is about a different variant/trim than selected.

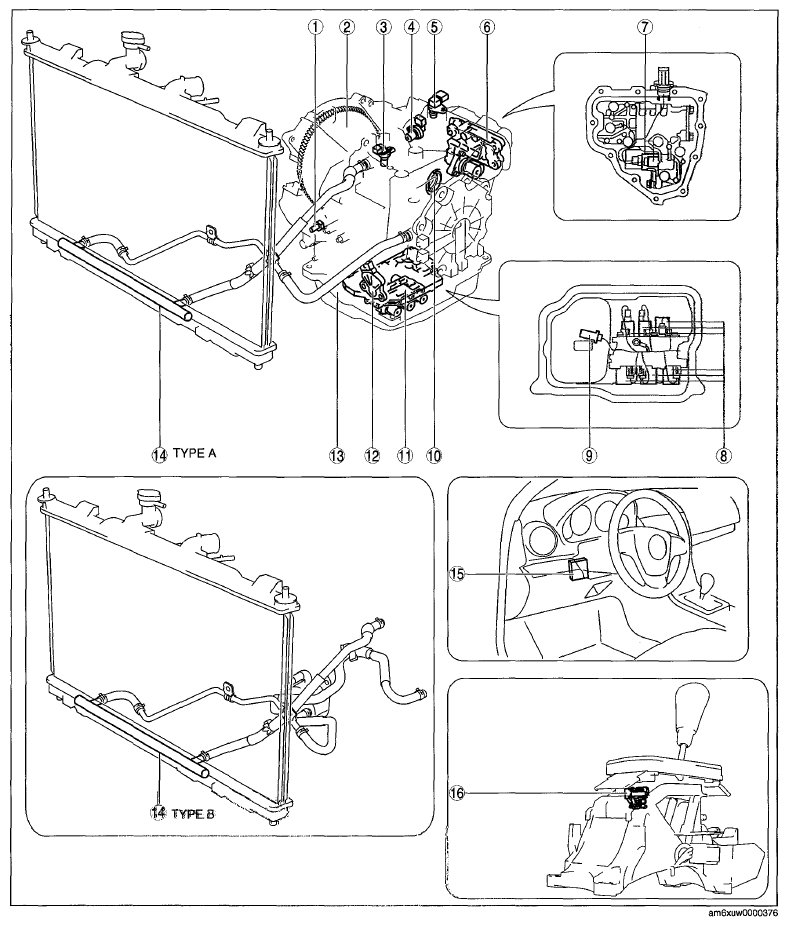

Fig 1: Automatic Transaxle Components Location (FS5A-EL)

G07625826

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION CHART

1	Oil pressure switch (See OIL PRESSURE SWITCH INSPECTION .) (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
2	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION .)
3	Input/turbine speed sensor (See INPUT/TURBINE SPEED SENSOR INSPECTION .) (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION .)
4	VSS (See VEHICLE SPEED SENSOR (VSS) INSPECTION .) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION .)
5	Intermediate sensor (See INTERMEDIATE SENSOR INSPECTION .) (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION .)
6	Secondary control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
7	Pressure control solenoid B Shift solenoid F (See SOLENOID VALVE INSPECTION .) (See SOLENOID VALVE REMOVAL/INSTALLATION .)
8	Pressure control solenoid A Shift solenoid A Shift solenoid B Shift solenoid C Shift solenoid D Shift solenoid E (See SOLENOID VALVE INSPECTION .) (See SOLENOID VALVE REMOVAL/INSTALLATION .)
9	TFT sensor (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION .) (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .)
10	Oil seal (See OIL SEAL REPLACEMENT .)
11	Primary control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
12	TR switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTOR .) (See TRANSAXLE RANGE (TR) SWITCH ADJUSTMENT .) (See TRANSAXLE RANGE (TR) SWITCH REMOVAL/INSTALLATION .)
13	Automatic transaxle (See MECHANICAL SYSTEM TEST .) (See ROAD TEST .) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
14	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION .) (See OIL COOLER FLUSHING .)
15	TCM (See TCM INSPECTION .) (See TCM REMOVAL/INSTALLATION .)
16	M position switch, up position, down position switch (See M POSITION SWITCH INSPECTION .) (See M POSITION SWITCH REMOVAL/INSTALLATION .) (See UP SWITCH INSPECTION .) (See UP SWITCH REMOVAL/INSTALLATION .) (See DOWN SWITCH INSPECTION .) (See DOWN SWITCH REMOVAL/INSTALLATION .)
