TCM Removal/Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

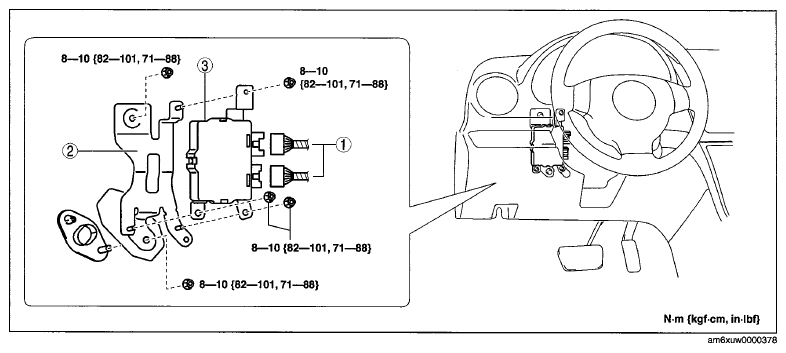

    Fig 1: TCM, Connector And Bracket With Torque Specification
    G07625909Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION CHART

    1 Connector
    2 Bracket
    3 TCM
