Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.

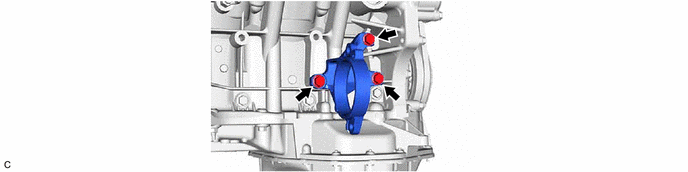

  1. REMOVE DRIVE SHAFT BEARING BRACKET
    1. GTY1237910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

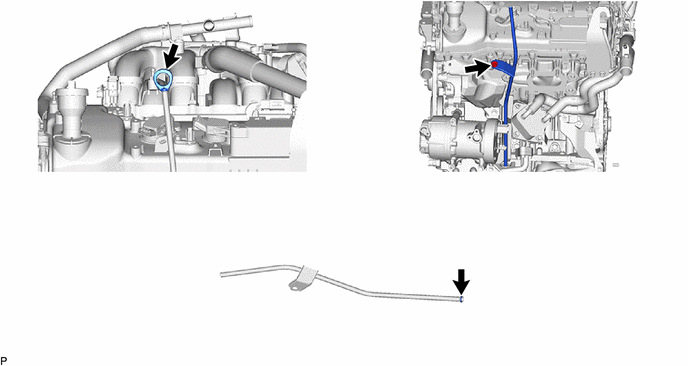

  2. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. GTY1236838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE V-RIBBED BELT
    Refer to PROCEDURE - Step 3
  4. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 9

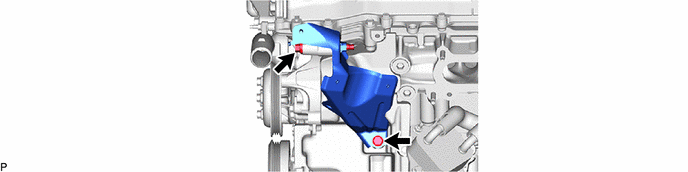

  5. REMOVE HV WATER PUMP BRACKET
    1. GTY1236837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

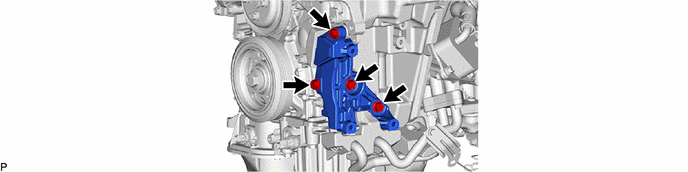

  6. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET
    1. GTY1236836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

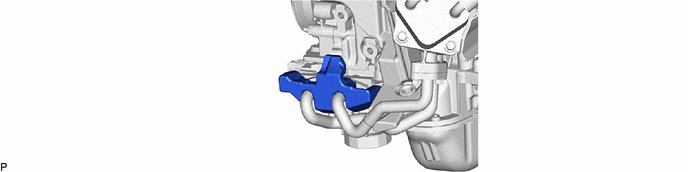

  7. REMOVE NO. 4 CYLINDER BLOCK INSULATOR
    1. GTY1236835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

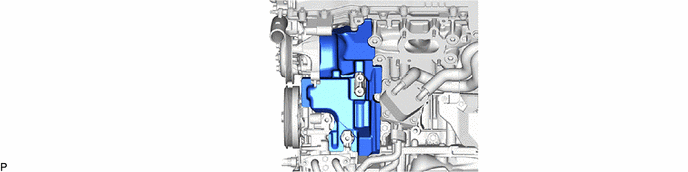

  8. REMOVE NO. 5 CYLINDER BLOCK INSULATOR
    1. GTY1240964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. DISCONNECT WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 13

  10. DISCONNECT NO. 2 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 14

  11. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 15
  12. REMOVE THROTTLE BODY GASKET

    Refer to PROCEDURE - Step 16

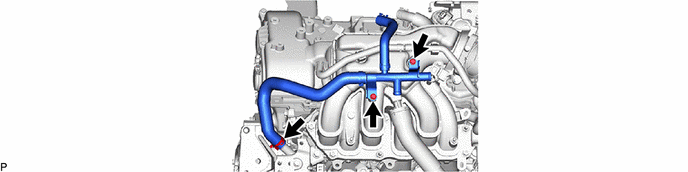

  13. REMOVE NO. 2 WATER BY-PASS PIPE
    1. GTY1236840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

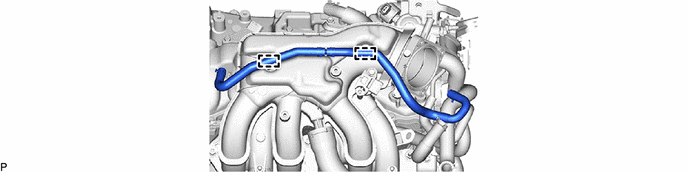

  14. REMOVE WATER BY-PASS HOSE
    1. GTY1236839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT VENTILATION HOSE

    Refer to PROCEDURE - Step 6

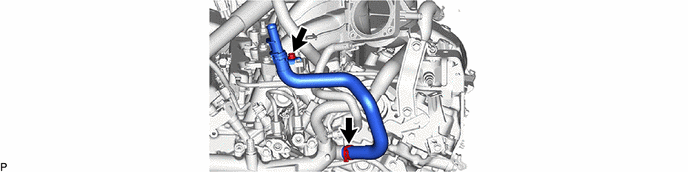

  16. REMOVE WATER BY-PASS HOSE SUB-ASSEMBLY
    1. GTY1240963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 2 SURGE TANK STAY

    Refer to PROCEDURE - Step 9

  18. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    Refer to PROCEDURE - Step 10
  19. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET

    Refer to PROCEDURE - Step 11

  20. REMOVE NO. 1 FUEL HOSE
    1. GTY1229260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 clamps.
      2. Remove the No. 1 fuel hose.

        Refer to PRECAUTION [12/2023 - ]

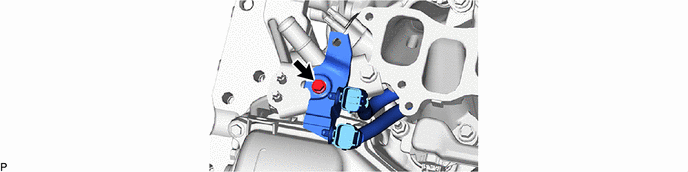

  21. DISCONNECT WIRE HARNESS CLAMP BRACKET
    1. GTY1236832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

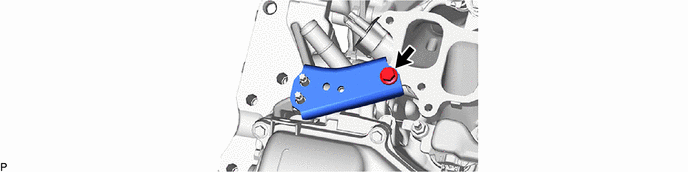

  22. REMOVE REAR ENGINE MOUNTING STAY RH
    1. GTY1236831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE INTAKE MANIFOLD
    Refer to PROCEDURE - Step 22
  24. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

    Refer to PROCEDURE - Step 23

  25. REMOVE FUEL PUMP PROTECTOR

    Refer to PROCEDURE - Step 7

  26. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 10
  27. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

    Refer to PROCEDURE - Step 11

  28. REMOVE FUEL PUMP LIFTER ASSEMBLY

    Refer to PROCEDURE - Step 13

  29. REMOVE FUEL PUMP SPACER GASKET

    Refer to PROCEDURE - Step 12

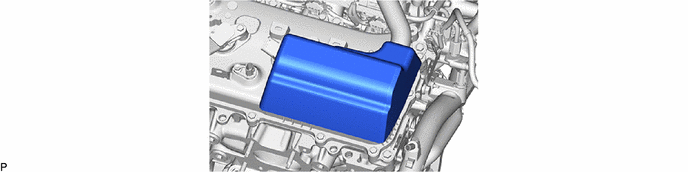

  30. REMOVE NO. 1 ENGINE COVER
    1. GTY1236830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

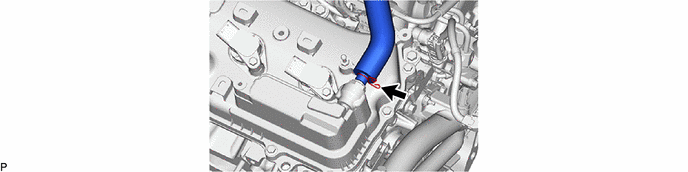

  31. REMOVE VENTILATION HOSE
    1. GTY1236829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

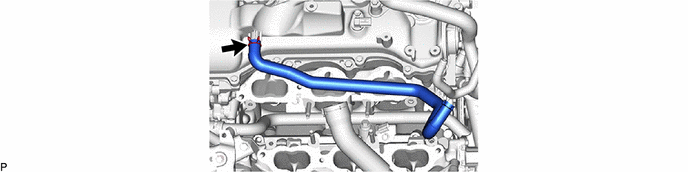

  32. REMOVE NO. 2 VENTILATION HOSE
    1. GTY1236827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

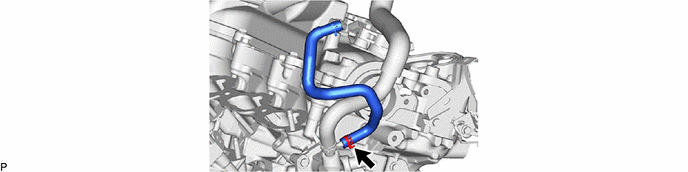

  33. REMOVE NO. 2 WATER BY-PASS HOSE
    1. GTY1236826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

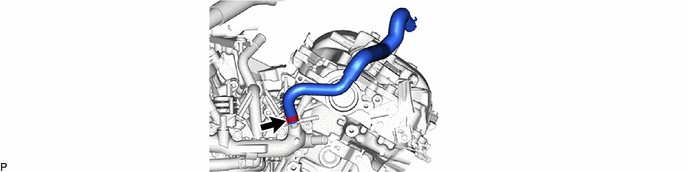

  34. REMOVE NO. 6 WATER BY-PASS HOSE
    1. GTY1240962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

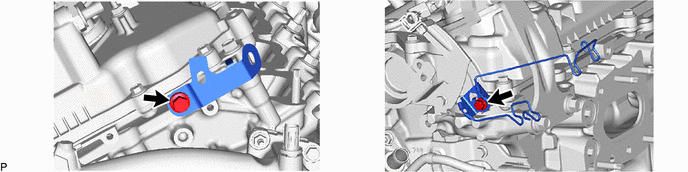

  35. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1236820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

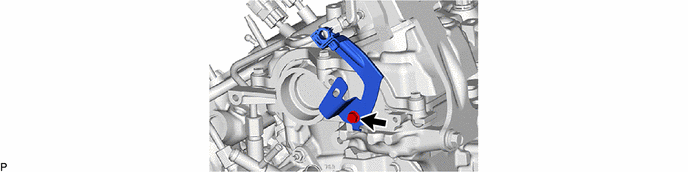

  36. REMOVE FUEL HOSE BRACKET
    1. GTY1236818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE IGNITION COIL ASSEMBLY
    Refer to PROCEDURE - Step 3
  38. REMOVE WATER PUMP PULLEY
    Refer to PROCEDURE - Step 3
