Removal [12/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

Refer to PROCEDURE - Step 13

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

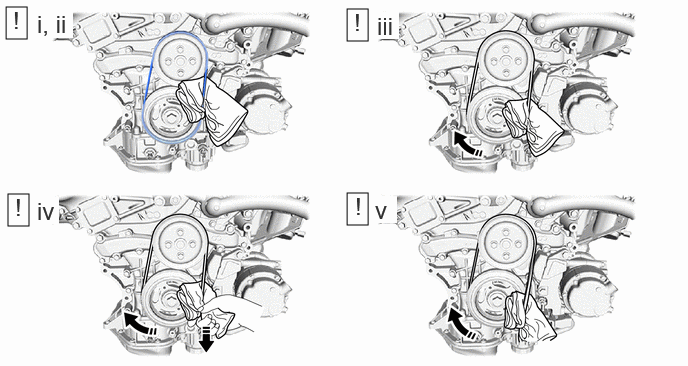

   1. Prepare a clean durable piece of cloth and fold it several times.

      HINT:

      Fold the cloth several times to make it thicker.

   2. Pass the cloth under the V-ribbed belt between the crankshaft pulley and water pump pulley as shown in the illustration.
      NOTE:

      Position the cloth so that the part closest to the engine is longer.

   3. Slightly rotate the crankshaft pulley clockwise so that the cloth is pulled between the V-ribbed belt and crankshaft pulley.
      NOTE:

      Make sure that the cloth is pulled around no more than 50% of the pulley.

   4. While gradually rotating the crankshaft pulley clockwise, pull the side of the cloth that is outside of the V-ribbed belt away from the engine.
      NOTE:

      Pull the cloth until part of the V-ribbed belt comes off the crankshaft pulley.

   5. Continue to rotate the crankshaft pulley clockwise until the V-ribbed belt is completely removed from the crankshaft pulley.
