Removal [12/2023 - ]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [12/2023 - ]

Refer to PROCEDURE - Step 6

Refer to PROCEDURE - Step 19

Refer to REMOVAL [12/2023 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

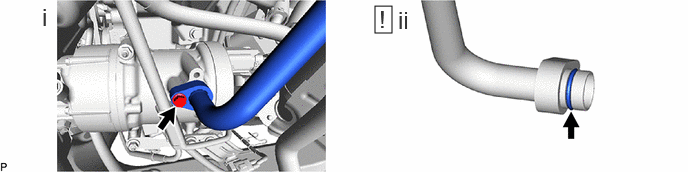

   1. Remove the bolt and disconnect the suction hose sub-assembly.
   2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

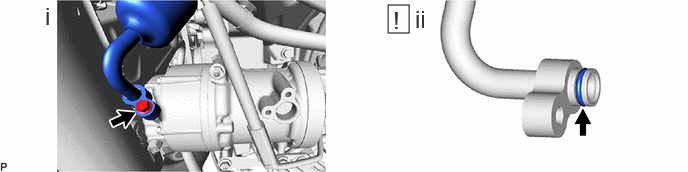

   1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose.
   2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage the 2 clamps.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector (A)	*b	Connector (B)
   *c	Green-colored Lock	-	-
   	Slide	-	-

   1. Slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector (A).
      WARNING:

      Make sure to wear insulated gloves.

      NOTE:

      Insulate the disconnected terminals and connector (A) with insulating tape.

   2. Disconnect the connector (B).

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage the 2 clamps.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

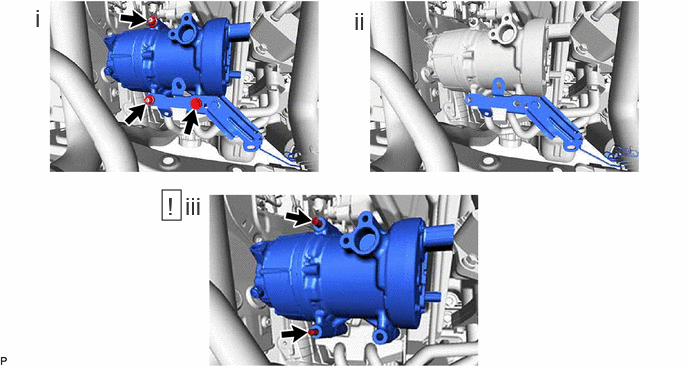

   1. Remove the bolt and 2 nuts.
   2. Remove the bracket.
   3. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor with motor assembly.
