Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2023 - ]

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE BATTERY SERVICE HOLE COVER

    Refer to PROCEDURE - Step 3

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  6. REMOVE EXHAUST MANIFOLD ASSEMBLY RH

    Refer to REMOVAL [12/2023 - ]

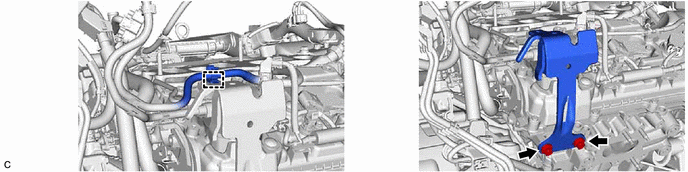

  7. REMOVE FUEL PUMP PROTECTOR
    1. GTY1232410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [12/2023 - ]

  9. DISCONNECT NO. 1 FUEL HOSE
    1. GTY1240666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 1 fuel hose from the fuel (engine room side) pump assembly.

        Refer to PRECAUTION [12/2023 - ]

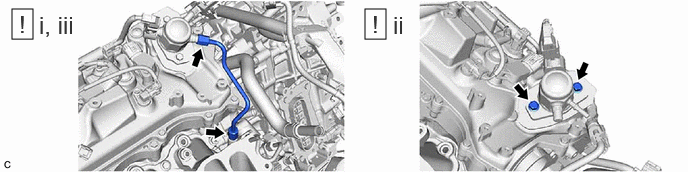

  10. REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.
    1. GTY1241274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 1 fuel pipe sub-assembly.
      2. Loosen the 2 bolts of the fuel (engine room side) pump assembly.
      3. Remove the No. 1 fuel pipe sub-assembly from the fuel delivery pipe RH and fuel (engine room side) pump assembly.

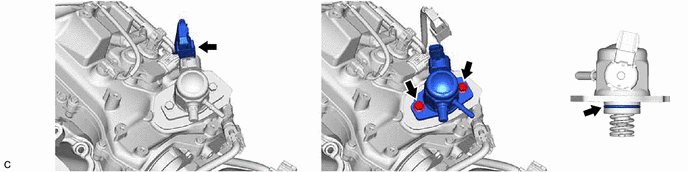

  11. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
    1. GTY1232404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

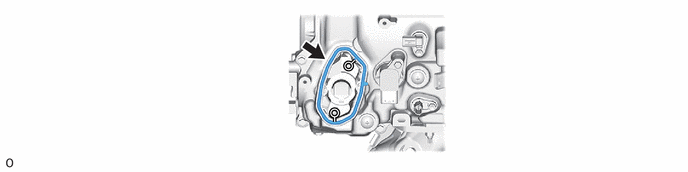

  12. REMOVE FUEL PUMP SPACER GASKET
    1. GTY1233111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

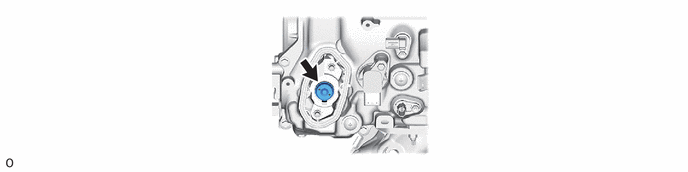

  13. REMOVE FUEL PUMP LIFTER ASSEMBLY
    1. GTY1233115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
