Removal [12/2023 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus TX 550h+. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [12/2023 - ]

  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to REMOVAL [12/2023 - ]

  4. REMOVE V-BANK COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 26
  5. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 30

  6. DISCONNECT VENTILATION HOSE
    1. GTY1236501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

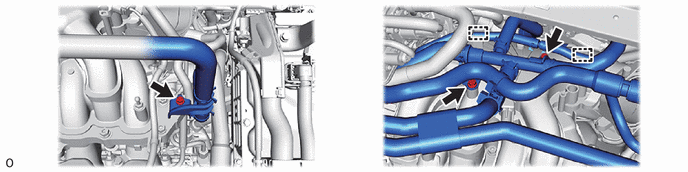

  7. DISCONNECT WATER BY-PASS HOSE SUB-ASSEMBLY
    1. GTY1236941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT ENGINE WIRE
    1. GTY1236940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 2 SURGE TANK STAY
    1. GTY1240891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
    1. GTY1241294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Stud bolt Remove in this direction
      1. Remove the 5 bolts and 2 nuts and separate the intake air surge tank assembly from the intake manifold.
      2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
      3. Remove the intake air surge tank assembly as shown in the illustration.

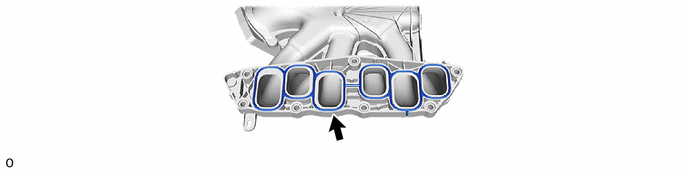

  11. REMOVE AIR SURGE TANK TO INTAKE MANIFOLD GASKET
    1. GTY1236499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 V-BANK COVER BRACKET

    HINT:

    Perform this procedure only when replacement of the No. 1 V-bank cover bracket is necessary.

    1. GTY1236498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR (E.F.I. VACUUM SENSOR ASSEMBLY)
    1. GTY1236497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 ENGINE MOUNTING STAY RH
    1. GTY1230258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Engine Wire *2 Wire Harness Clamp Bracket
      Bolt Nut
      Connector - -
  15. REMOVE REAR ENGINE MOUNTING STAY RH
    1. GTY1240888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 EGR PIPE
    1. GTY1236063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
      Stud bolt - -
      1. Remove the 2 bolts and 2 nuts.
      2. Using an E6 "TORX" socket wrench, remove the stud bolt from the intake manifold.

        HINT:

        If a stud bolt is deformed or the threads are damaged, replace it.

      3. Remove the No. 2 EGR pipe.
  17. REMOVE NO. 2 EGR PIPE GASKET
    1. GTY1236491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT NO. 1 FUEL HOSE
    Refer to PROCEDURE - Step 7
  19. REMOVE FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY
    Refer to PROCEDURE - Step 8
  20. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 9

  21. REMOVE INJECTOR VIBRATION INSULATOR

    Refer to PROCEDURE - Step 10

  22. REMOVE INTAKE MANIFOLD
    1. GTY1231184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Nut
    2. GTY1236543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E6 "TORX" socket wrench, remove the stud bolt from the intake manifold.

        HINT:

        If a stud bolt is deformed or the threads are damaged, replace it.

  23. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
    1. GTY1236486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
