Disassembly [11/2021 - ]: Procedure

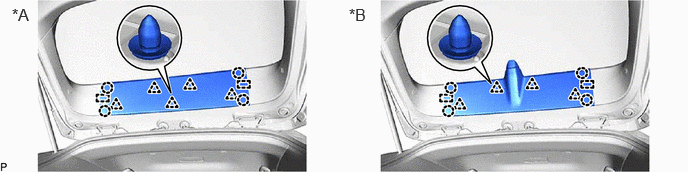

  1. REMOVE BACK DOOR UPPER TRIM COVER
    1. GTY1053950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Digital Inner Mirror *B w/ Digital Inner Mirror

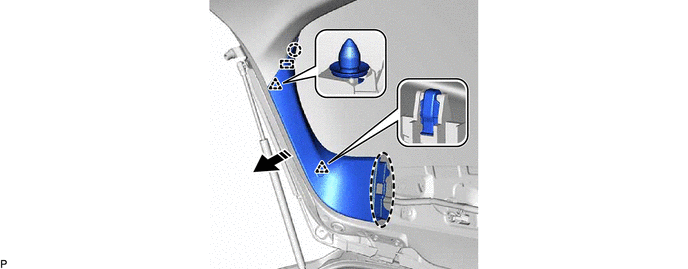

  2. REMOVE BACK DOOR SIDE GARNISH LH
    1. GTY1053412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.

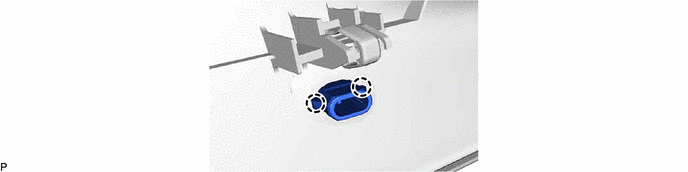

  4. REMOVE ROPE HOOK
    1. GTY1053709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Use the same procedure for the RH side and LH side.

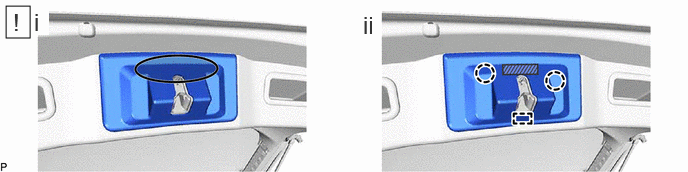

  5. REMOVE BACK DOOR LOCK COVER
    HINT:
    When removing the back door lock cover, heat the back door panel sub-assembly and back door lock cover using a heat light.
    1. GTY1053952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Heated Part Double-sided Tape
      1. Using a heat light, heat the back door lock cover and back door panel sub-assembly.
        WARNING:
        • Do not touch the heat light and heated parts, touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
        GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Heated Part
        *b Heat Light
        NOTE:

        Do not heat the vehicle body excessively.

        HEATING TEMPERATURE

        Item Temperature
        Back Door Lock Cover and Back Door Panel Sub-assembly 40 to 60°C (104 to 140°F)
      2. Separate the double-sided tape and disengage the 2 claws, guide to remove the back door lock cover.

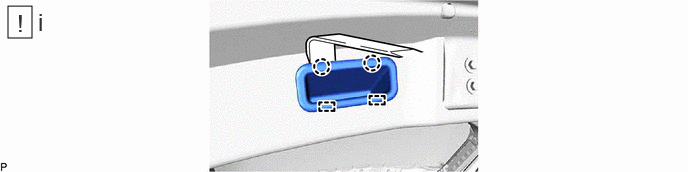

  6. REMOVE BACK DOOR INSIDE HANDLE
    1. GTY1053087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the 2 claws and 2 guides to remove the back door inside handle.

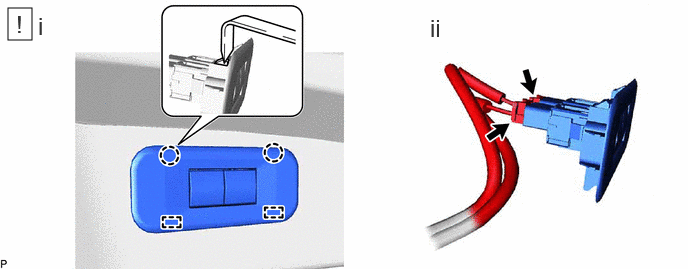

  7. REMOVE SWITCH BASE
    1. GTY1053206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the 2 claws and 2 guides as shown in the illustration.
      2. Disconnect the 2 connectors to remove the switch base.

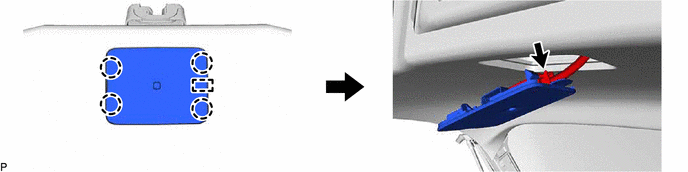

  8. REMOVE BACK DOOR SERVICE HOLE COVER
    1. GTY1053698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

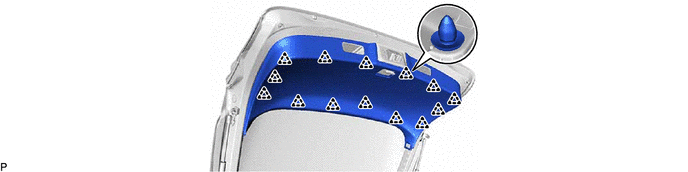

  9. REMOVE BACK DOOR TRIM BOARD ASSEMBLY
    1. GTY1053695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  9

  11. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  12. REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  13. REMOVE MULTIPLEX NETWORK DOOR ECU

    See step  9

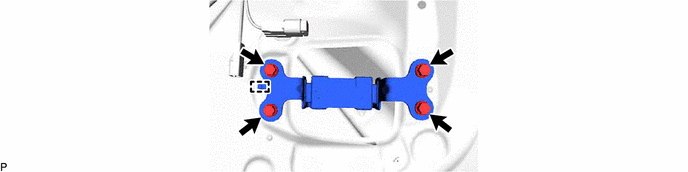

  14. REMOVE BACK DOOR WEIGHT
    1. GTY1053704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 9

  16. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 2

  17. REMOVE REAR SPOILER ASSEMBLY
    Refer to PROCEDURE - Step 3
  18. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  19. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  20. REMOVE REAR WASHER NOZZLE
    Refer to PROCEDURE - Step 2
  21. REMOVE REAR WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 1

  22. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 2

  23. REMOVE REAR WIPER MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 11
  24. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 12

  25. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
    Refer to PROCEDURE - Step 10
  26. REMOVE REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 2
  27. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    See step  2

  28. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 3

  29. REMOVE LICENSE PLATE LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2

  30. REMOVE LICENSE PLATE LIGHT ASSEMBLY RH
    1. Use the same procedure as for the LH side.

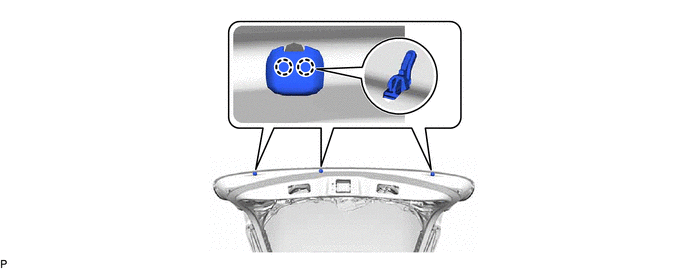

  31. REMOVE BACK DOOR DUST PROOF SEAL
    1. GTY1053702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

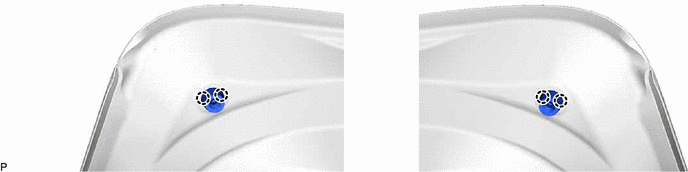

  32. REMOVE BACK DOOR PANEL CUSHION
    1. GTY1053728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY LH
    See step  10
  34. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  35. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH

    See step  11

  36. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH
    1. Use the same procedure as for the LH side.
  37. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH

    See step  12

  38. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH
    1. Use the same procedure as for the LH side.
  39. REMOVE BACK DOOR STAY STOPPER

    See step  13

  40. REMOVE ROOF HEADLINING ASSEMBLY

    Refer to REMOVAL [11/2021 - 03/2024]

  41. REMOVE NO. 5 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  42. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 9
