Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE HOLE PLUG

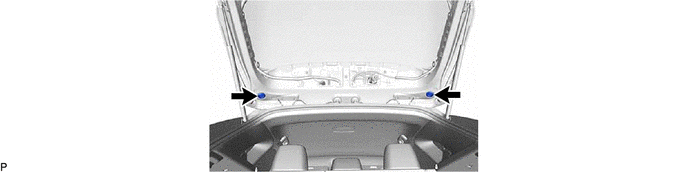

    1. GTY1053154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SPOILER ASSEMBLY

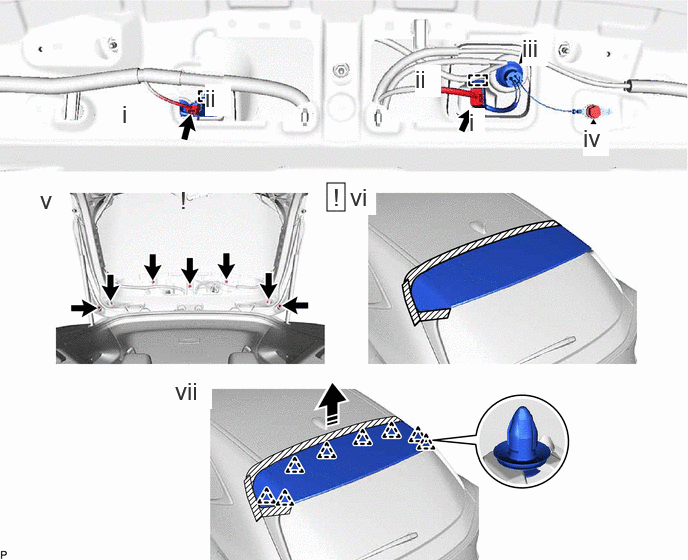

    1. GTY1052707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the 2 connectors.
      2. Disengage the 2 clamps.
      3. Disengage the grommet.
      4. Remove the bolt.
      5. Remove the 5 nuts and 2 bolts.
      6. Apply protective tape around the rear spoiler assembly as shown in the illustration.
      7. Disengage the 8 clips and remove the rear spoiler assembly as shown in the illustration.
  4. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH

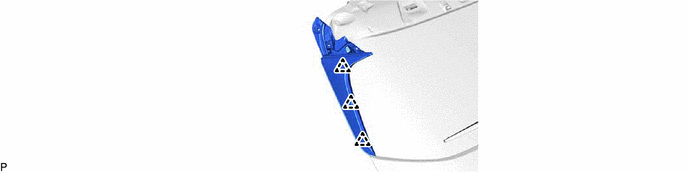

    1. GTY1053183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH
    1. Use the same procedure as for the LH side.
