Removal [11/2021 - ]: Procedure

PRECAUTION

w/ Parking Assist Monitor System:
Refer to PRECAUTION [11/2021 - ]
w/ Panoramic View Monitor System:
Refer to PRECAUTION [11/2021 - ]

REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
Refer to REMOVAL [11/2021 - ]

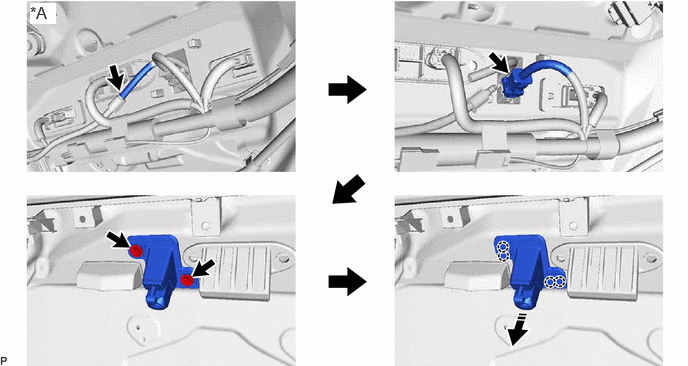

REMOVE REAR TELEVISION CAMERA ASSEMBLY

GTY1069524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Washer	-	-
	Remove in this Direction	-	-

When reusing the rear television camera assembly:

GTY1069927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-
