Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [11/2021 - ]

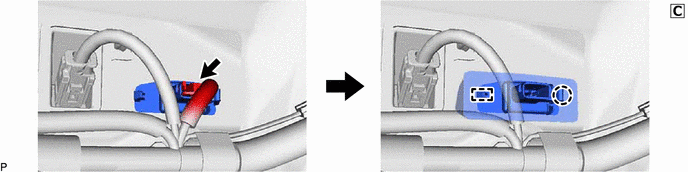

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY
    1. GTY1073819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
