Removal [11/2021 - ]: Procedure

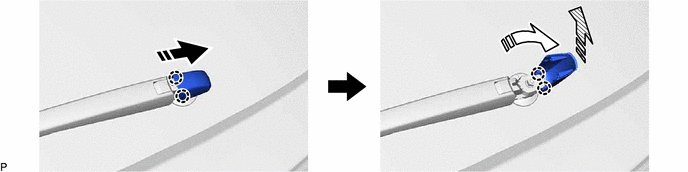

  1. REMOVE REAR WIPER ARM HEAD CAP
    1. GTY1069378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Remove in this Direction (3) - -

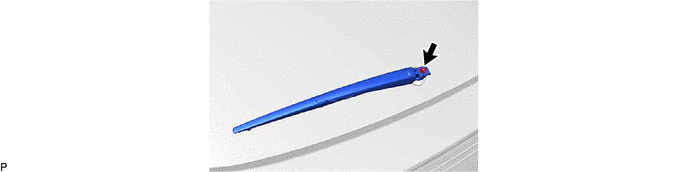

  2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. GTY1069273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BACK DOOR UPPER TRIM COVER

    Refer to PROCEDURE - Step 1

  4. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  5. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  6. REMOVE BACK DOOR LOCK COVER
    Refer to PROCEDURE - Step 5
  7. REMOVE BACK DOOR INSIDE HANDLE
    Refer to PROCEDURE - Step 6
  8. REMOVE SWITCH BASE
    Refer to PROCEDURE - Step 7
  9. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 8

  10. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 9

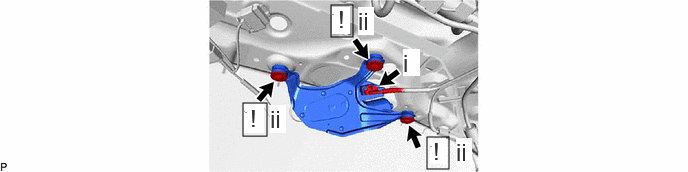

  11. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. GTY1069991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Remove the 3 bolts and rear wiper motor assembly.
        NOTE:

        Be careful not to scratch the back door glass.

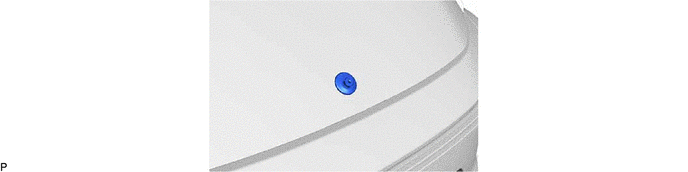

  12. REMOVE REAR WIPER MOTOR GROMMET
    1. GTY1069274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
