Removal [11/2021 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE REAR LIGHT ASSEMBLY

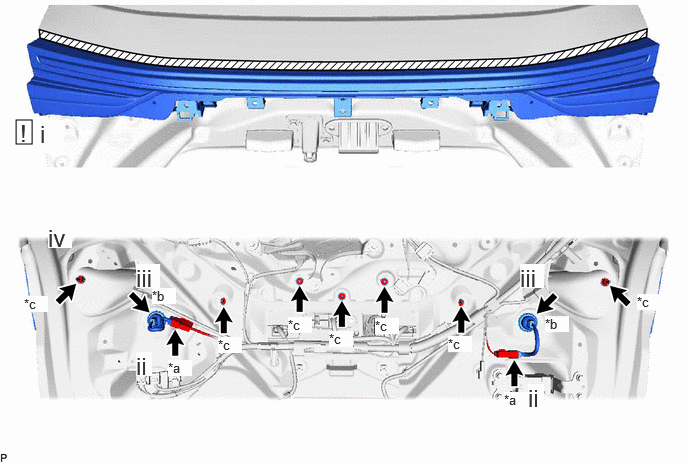

    1. GTY1070001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector *b Grommet
      *c Nut - -
      1. Apply protective tape around the rear light assembly as shown in the illustration.
      2. Disconnect the 2 connectors.
      3. Disconnect the 2 grommets.
      4. Remove the 7 nuts.

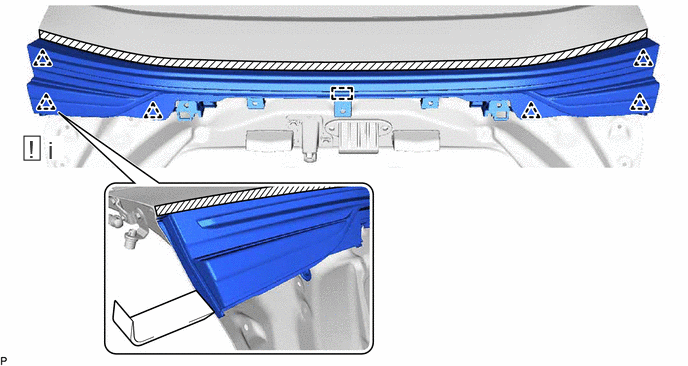

    2. GTY1070657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover, disengage the 6 clips and guide to remove the rear light assembly.
