Removal [09/2014 - 11/2017]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE FRONT SEAT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE FRONT DOOR SCUFF PLATE LH

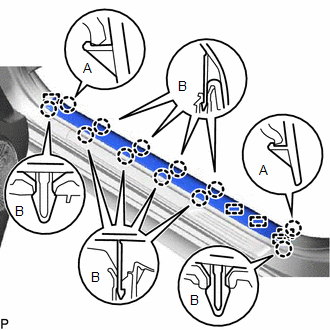

    1. Disengage the 2 claws (A).
      GTY498713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 10 claws (B) and 5 guides to remove the front door scuff plate LH.
  4. REMOVE FRONT DOOR OPENING TRIM COVER LH

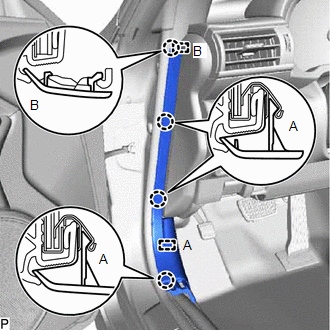

    1. Disengage the 3 claws (A) and guide (A).
      GTY515229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the claws and guide from the lower side of the front door opening trim cover LH.

    2. Disengage the claw (B) and guide (B) to remove the front door opening trim cover LH.
  5. REMOVE FRONT PILLAR GARNISH LH
    1. Apply protective tape around the front pillar garnish LH as shown in the illustration.

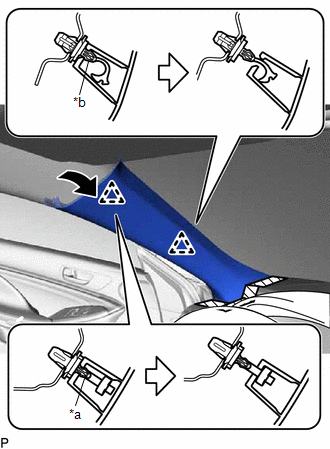

      GTY502879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front Pillar Garnish Clip (A)
      *b Front Pillar Garnish Clip (B)
      Protective Tape
    2. Pull the upper part of the front pillar garnish LH toward the inside of the cabin and disengage the front pillar garnish LH from the base of the 2 front pillar garnish clips.

      HINT:

      Let the front pillar garnish LH hang from the 2 front pillar garnish clips.

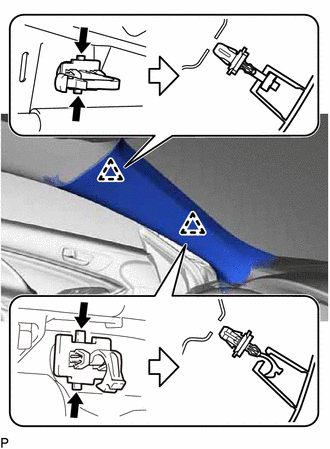

    3. While pushing the tabs on the 2 front pillar garnish clips as shown in the illustration, disengage the 2 front pillar garnish clips.
      GTY517686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • A front pillar garnish clip is reusable if it is not damaged.
      • Do not apply excessive force using a tool.

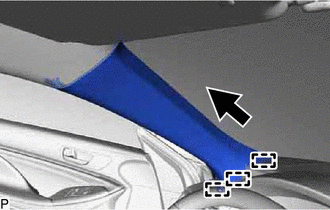

    4. Disengage the 3 guides to remove the front pillar garnish LH as shown in the illustration.
      GTY498375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly LH.

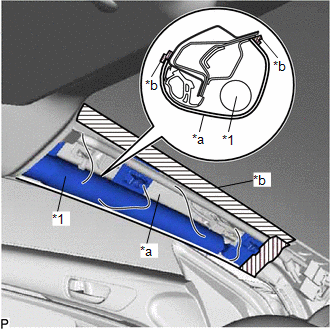

      GTY506390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *a Protective Cover
      *b Adhesive Tape
      1. Cover the curtain shield airbag assembly LH with a piece of cloth or nylon and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.

  6. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  7. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  11. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 6

  12. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  13. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  14. REMOVE REAR SIDE SEATBACK ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  15. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH

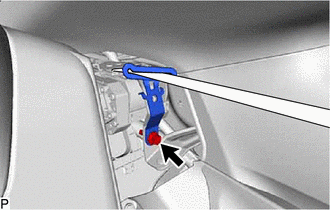

    1. Remove the bolt and disconnect the belt guide of the rear seat 3 point type outer belt assembly LH.
      GTY516639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

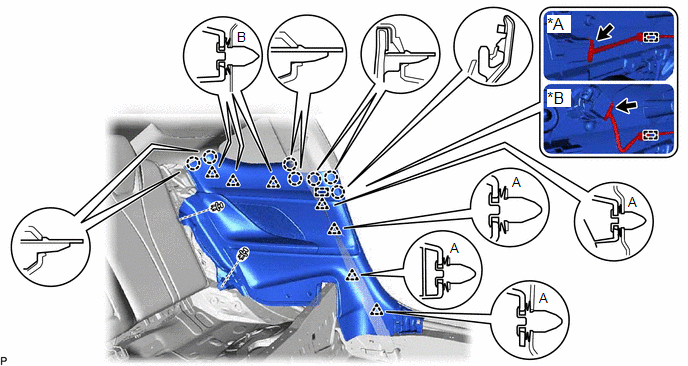

    2. Remove the 2 clips.
      GTY512175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Rear No. 2 Speaker Assembly *B w/ Rear No. 2 Speaker Assembly
    3. Disengage the 4 clips (A).
    4. Disengage the 7 claws, 3 clips (B) and guide to disconnect the front quarter trim panel assembly LH.

      HINT:

      Disengage the claws, clips and guide from the front side of the front quarter trim panel assembly LH.

    5. Disengage the clamp.
    6. Disconnect the connector to remove the front quarter trim panel assembly LH.
  16. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH

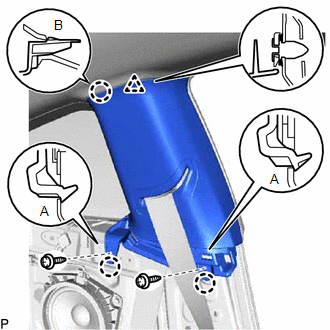

    1. Remove the 2 screws.
      GTY514254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws (A).
    3. Disengage the claw (B) and clip to disconnect the center pillar garnish assembly LH.

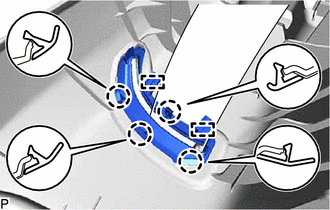

    4. Disengage the 4 claws and 2 guides to disconnect the belt guide of the front seat outer belt assembly LH.
      GTY498358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Pass the floor anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH to remove it.
  17. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

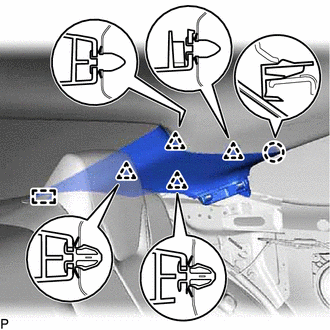

    1. Disengage the claw and 4 clips.
      GTY516638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the inner roof side garnish assembly LH.
  18. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY LH

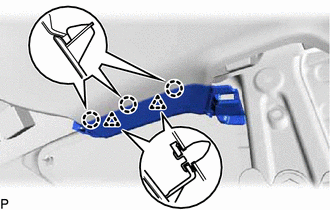

    1. Disengage the 3 claws and 2 clips to remove the roof side rail garnish assembly LH.
      GTY498374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Disengage the claws and clips from the front side of the roof side rail garnish assembly LH.

  19. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  20. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  21. DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE REAR SIDE SEATBACK ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  25. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE ROOF SIDE RAIL GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  27. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017]

  28. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Lane Departure Alert System)

    Refer to PROCEDURE - Step 3

  29. REMOVE RAIN SENSOR COVER (w/o Lane Departure Alert System)

    w/ Rain Sensor:

    Refer to PROCEDURE - Step 1

  30. REMOVE RAIN SENSOR (w/o Lane Departure Alert System)

    w/ Rain Sensor:

    Refer to PROCEDURE - Step 3

  31. REMOVE NO. 1 LANE RECOGNITION COVER (w/ Lane Departure Alert System)

    Refer to PROCEDURE - Step 1

  32. REMOVE NO. 2 LANE RECOGNITION COVER (w/ Lane Departure Alert System)

    Refer to PROCEDURE - Step 2

  33. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 1 [10/2015 - 11/2017]

  34. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. REMOVE ASSIST GRIP SUB-ASSEMBLY (for LH Side)

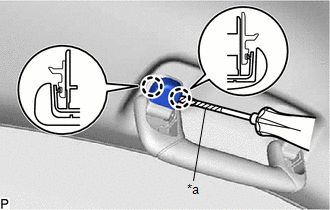

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the assist grip cover.
      GTY496493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    2. Disengage the 2 clips and remove the assist grip.

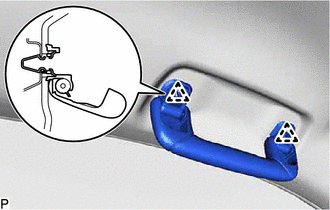

      GTY498314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 clips from the vehicle body.
  36. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover.

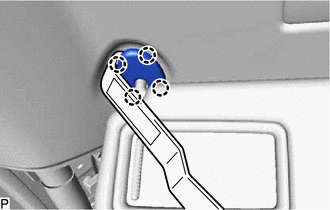

      GTY517684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE VISOR ASSEMBLY LH

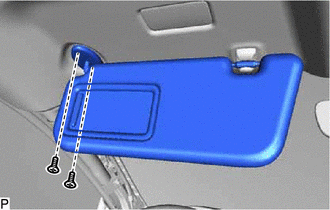

    1. Remove the 2 screws and visor assembly LH.
      GTY498365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE VISOR HOLDER (for LH Side)
    1. Turn the visor holder approximately 45° and pull it out as indicated by the arrows, in the order shown in the illustration.
      Fig 1: Visor Holder Removal Sequence (For LH Side)

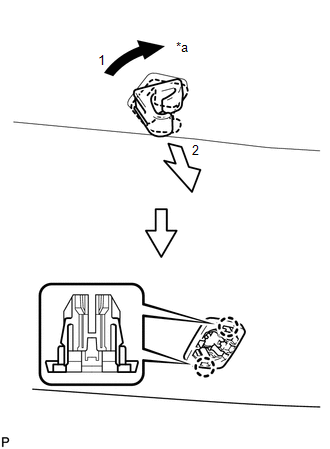

      GTY454606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
    2. Disengage the 2 claws and remove the visor holder.
  39. REMOVE ASSIST GRIP SUB-ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  40. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  42. REMOVE VISOR HOLDER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  43. REMOVE ROOF HEADLINING ASSEMBLY
    1. for Windshield Glass Side:
      1. Disconnect each connector.
    2. for Front Pillar LH Side:
      1. Using a clip remover, disengage the 3 clamps.

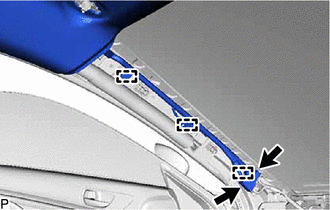

        GTY498390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the 2 connectors.
    3. for Roof Side (w/o Sliding Roof):

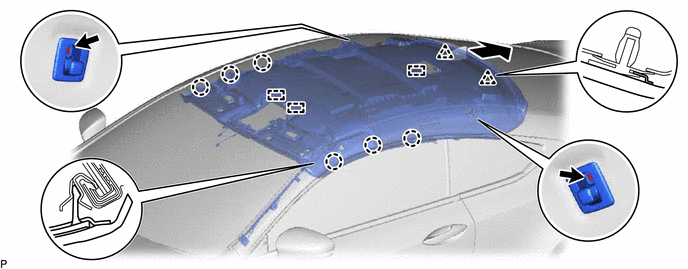

      GTY498362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws from the 2 coat hooks.
      2. Disengage the 6 claws.
      3. Slide the roof headlining assembly to disengage the 2 clips and 3 guides as shown in the illustration.

        HINT:

        Leave the 2 clips installed the vehicle body.

    4. for Roof Side (w/ Sliding Roof):

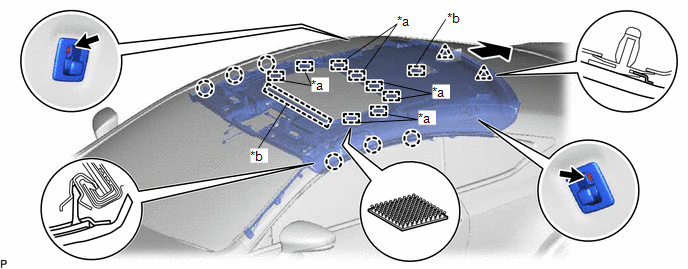

      GTY515765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener *b Guide
      1. Disconnect the connector from the sliding roof drive gear sub-assembly.
      2. Remove the 2 screws from the 2 coat hooks.
      3. Disengage the 6 claws and 8 fasteners.
      4. Slide the roof headlining assembly to disengage the 2 clips and 2 guides as shown in the illustration.

        HINT:

        Leave the 2 clips installed the vehicle body.

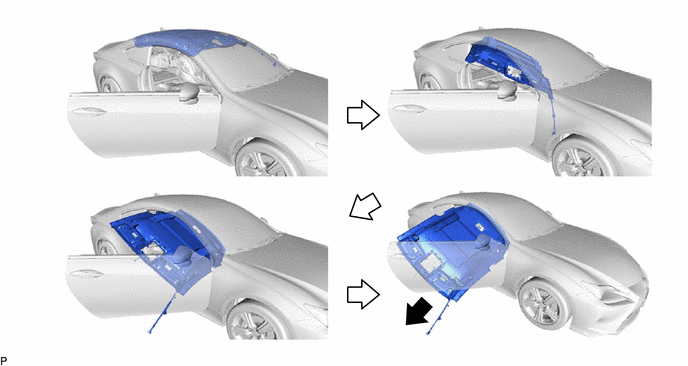

    5. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
      GTY498354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

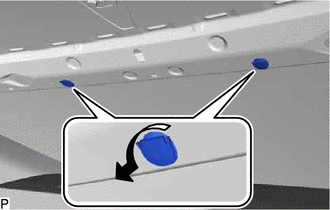

    6. Remove the 2 clips from the vehicle body as shown in the illustration.
      GTY498393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the grommet from the vehicle body.

      HINT:

      Use the same procedure for the RH side and LH side.

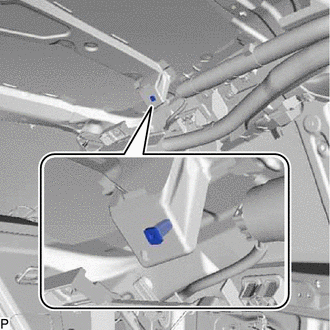

      GTY498359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
