Removal [09/2014 - ]: Procedure

  1. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

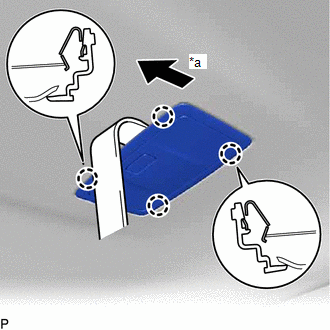

    1. Using a moulding remover, disengage the 4 claws.
      GTY511234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front
    2. Disconnect the connector to remove the No. 1 room light assembly.
